• SKF 51310 Single Thrust Ball Bearing 50x95x31mm
1 1

SKU: 51310-SKF

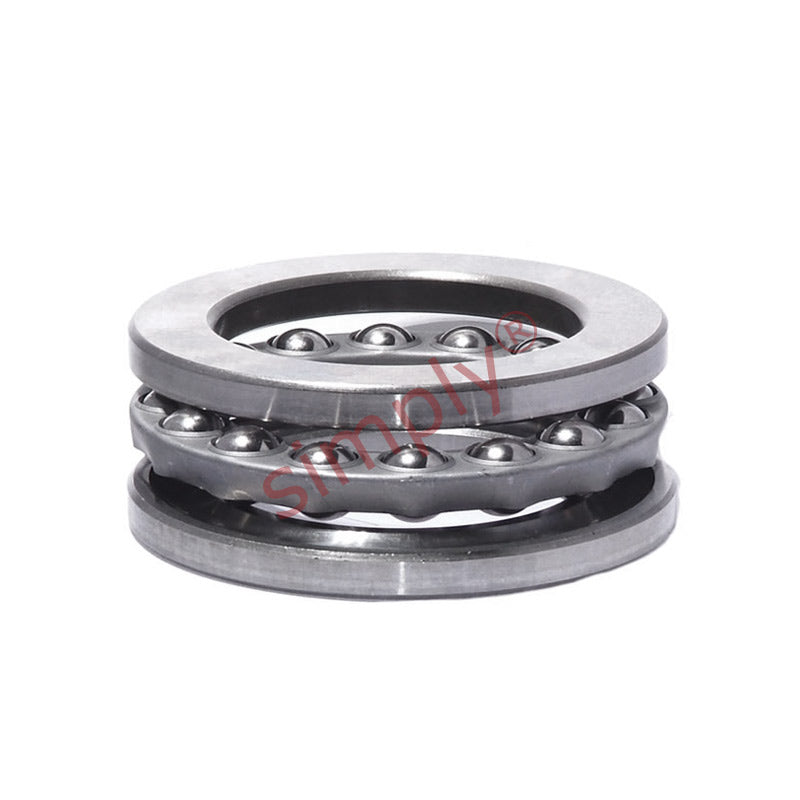

SKF 51310 Single Thrust Ball Bearing 50x95x31mm

SKF 51310 Single Thrust Ball Bearing 50x95x31mm
CHF 88.00 ex VAT
CHF 88.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 69.41
19+ CHF 65.51
29+ CHF 64.73
39+ CHF 63.95
49+ CHF 63.17
74+ CHF 62.39
99+ CHF 58.49
199+ CHF 57.71
249+ CHF 56.93
499+ CHF 56.15
999+ CHF 54.59
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
SKF - High Quality
Inside Diameter:
50mm
Outside Diameter:
95mm
Width:
31mm
Technical
d 50mm
D 95mm
H 31mm
Dynamic load C 88.4 kN
Static load Co 190 kN
Fatigue load limit Pu 6.95 kN
Minimum load factor A 0.19
Reference speed 2600 rpm
Limiting speed 3600 rpm
Weight 0.94 kg
d1 95mm
D1 52mm
r1r2 min 1.1mm
da min 77mm
Da max 68mm
ra max 1mm
