SKU: 51317-SKF

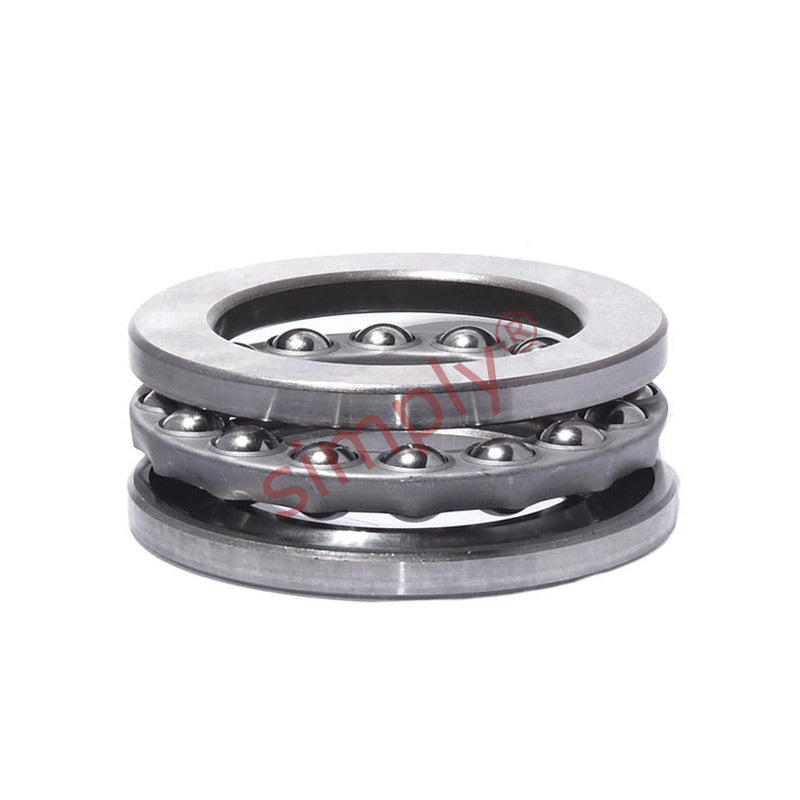

SKF 51317 Single Thrust Ball Bearing 85x150x49mm
SKF 51317 Single Thrust Ball Bearing 85x150x49mm
Regular price
CHF 325.00
ex VAT
Regular price
Sale price
CHF 325.00
ex VAT
In stock
Price Break
10+
CHF 258.18
19+
CHF 243.68
29+
CHF 240.78
39+
CHF 237.88
49+
CHF 234.98
74+
CHF 232.08
99+
CHF 217.57
199+
CHF 214.67
249+
CHF 211.77
499+
CHF 208.87
999+
CHF 203.07
Share this product
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
- Width:
- 49mm
Technical
Technical
| d | 85mm |
|---|---|
| D | 150mm |
| H | 49mm |
| Dynamic load C | 190 kN |
| Static load Co | 465 kN |
| Fatigue load limit Pu | 16 kN |
| Minimum load factor A | 1.1 |
| Reference speed | 1600 rpm |
| Limiting speed | 2200 rpm |
| Weight | 3.55 kg |
| d1 | 150mm |
| D1 | 88mm |
| r1r2 min | 1.5mm |
| da min | 124mm |
| Da max | 111mm |
| ra max | 1.5mm |
