SKU: 5200-2RS-KSM

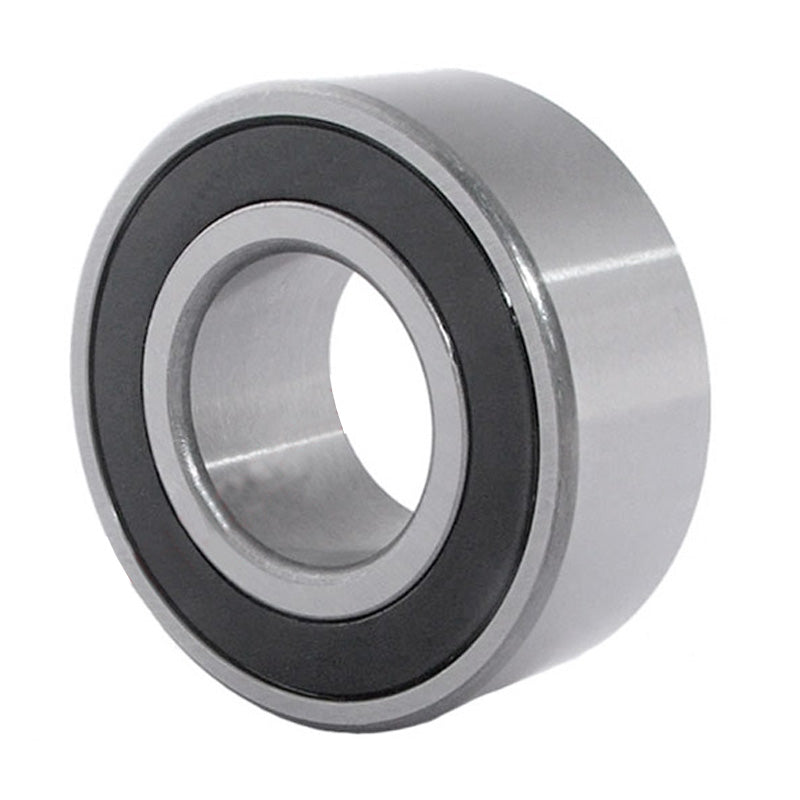

KSM 52002RS Rubber Sealed Double Row Angular Contact Ball Bearing 10x30x14.3mm
KSM 52002RS Rubber Sealed Double Row Angular Contact Ball Bearing 10x30x14.3mm
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
Equivalent to: 32002RS
In stock
Price Break
4+
CHF 19.73
9+
CHF 18.62
19+
CHF 18.40
29+
CHF 18.18
49+
CHF 17.96
99+
CHF 17.74
179+
CHF 16.63
249+
CHF 16.41
499+
CHF 16.18
699+
CHF 15.96
999+
CHF 15.52
Share this product
Description
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 32002RS
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 32002RS
- Brand / Quality:
- KSM - Good Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 14.3mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| --- | Bearing Dimensions |
|---|---|
| d | 10mm |
| D | 30mm |
| B | 14.3mm |
| --- | Abutment Dimensions |
| a | 17.5mm |
| r1r2 min | 0.6mm |
| r1r2 max | 0.6mm |
| Da min | 15mm |
| da max | 25mm |
| --- | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | 6950 N |
| Basic Static Load Raiting Cor | 3800 N |
| Limiting Speed in Grease | 16000 rpm |
| Limiting Speed in Oil | 22000 rpm |
| Weight | 0.049 kg |
