SKU: 5209-2RS-KSM

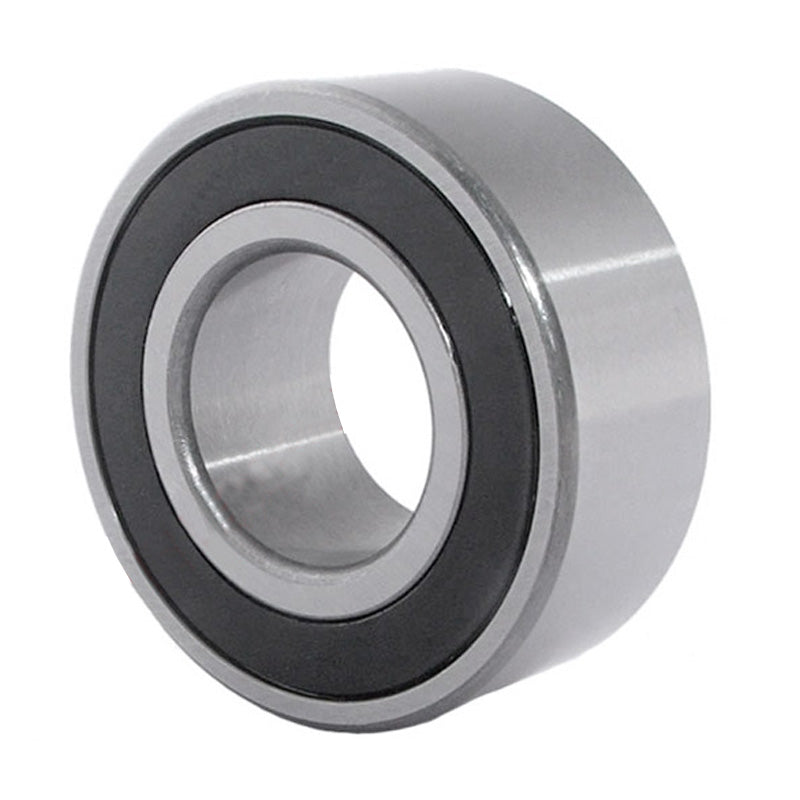

KSM 52092RS Rubber Sealed Double Row Angular Contact Ball Bearing 45x85x30.2mm
KSM 52092RS Rubber Sealed Double Row Angular Contact Ball Bearing 45x85x30.2mm
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
Equivalent to: 32092RS
In stock
Price Break
4+
CHF 39.46
9+
CHF 37.25
19+
CHF 36.80
29+
CHF 36.36
49+
CHF 35.91
99+
CHF 35.47
179+
CHF 33.25
249+
CHF 32.81
499+
CHF 32.37
699+
CHF 31.92
999+
CHF 31.04
Share this product
Description
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 32092RS
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 32092RS
- Brand / Quality:
- KSM - Good Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 30.2mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| --- | Bearing Dimensions |
|---|---|
| d | 45mm |
| D | 85mm |
| B | 30.2mm |
| --- | Abutment Dimensions |
| a | 50.5mm |
| r1r2 min | 1.1mm |
| r1r2 max | 1mm |
| Da min | 52mm |
| da max | 78mm |
| --- | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | 18000 N |
| Basic Static Load Raiting Cor | 37000 N |
| Limiting Speed in Grease | 5000 rpm |
| Limiting Speed in Oil | 6700 rpm |
| Weight | 0.61 kg |
