SKU: 5210-2RS-KSM

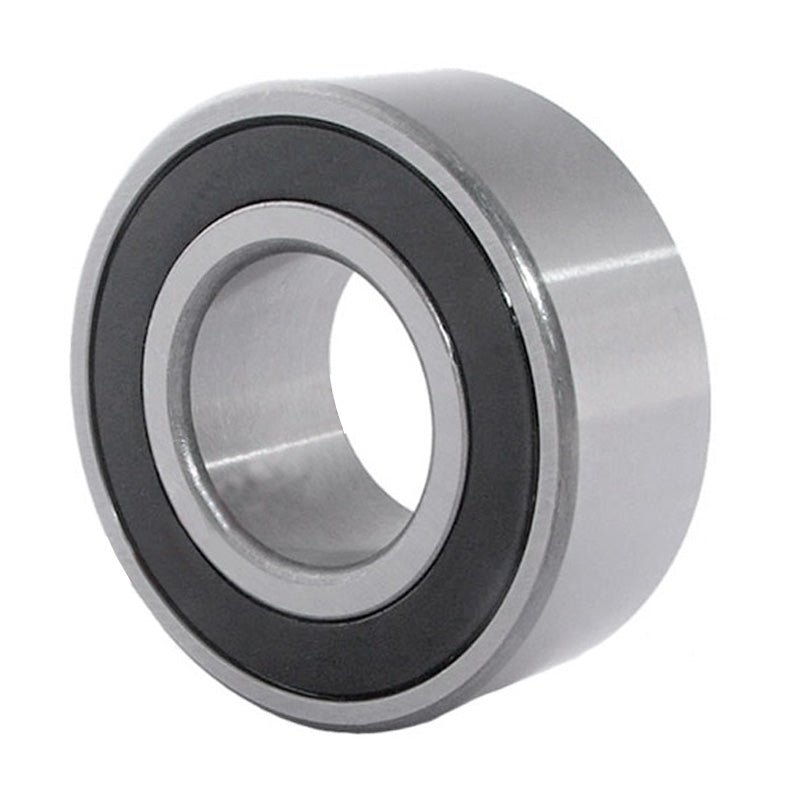

KSM 52102RS Rubber Sealed Double Row Angular Contact Ball Bearing 50x90x30.2mm
KSM 52102RS Rubber Sealed Double Row Angular Contact Ball Bearing 50x90x30.2mm
Regular price
CHF 54.00
ex VAT
Regular price
Sale price
CHF 54.00
ex VAT
Equivalent to: 32102RS
In stock
Price Break
4+
CHF 42.89
9+
CHF 40.48
19+
CHF 40.00
29+
CHF 39.52
49+
CHF 39.04
99+
CHF 38.56
179+
CHF 36.15
249+
CHF 35.66
499+
CHF 35.18
699+
CHF 34.70
999+
CHF 33.74
Share this product
Description
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 32102RS
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 32102RS
- Brand / Quality:
- KSM - Good Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 30.2mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| --- | Bearing Dimensions |
|---|---|
| d | 50mm |
| D | 90mm |
| B | 30.2mm |
| --- | Abutment Dimensions |
| a | 54mm |
| r1r2 min | 1.1mm |
| r1r2 max | 1mm |
| Da min | 57mm |
| da max | 83mm |
| --- | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | 51000 N |
| Basic Static Load Raiting Cor | 12000 N |
| Limiting Speed in Grease | 1000 rpm |
| Limiting Speed in Oil | 5300 rpm |
| Weight | 0.689 kg |
