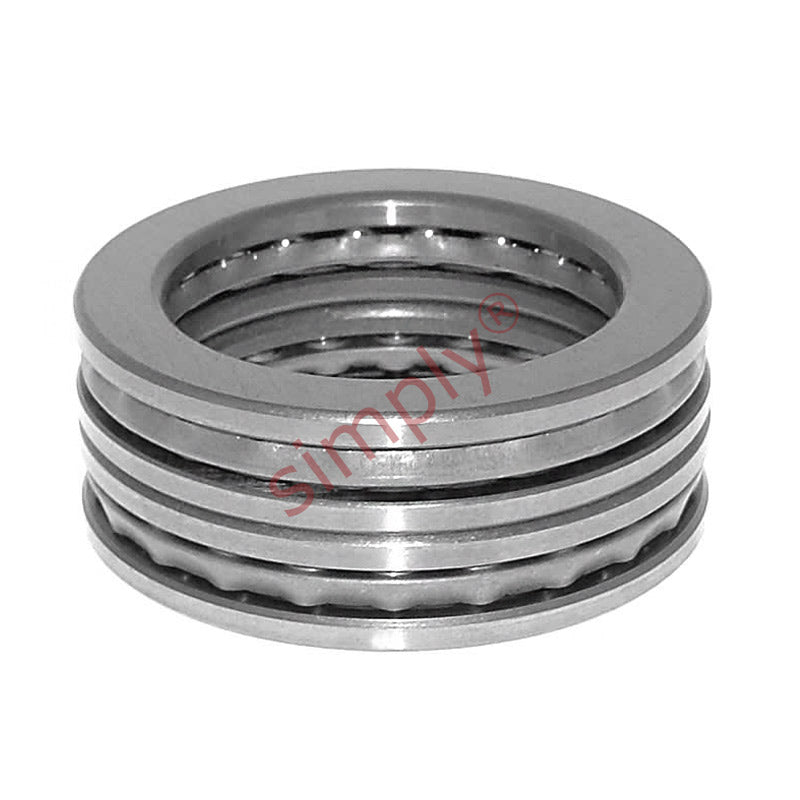

• SKF 52207 Double Thrust Ball Bearing with Flat Seats 30x62x34mm
1 1

SKU: 52207-SKF

SKF 52207 Double Thrust Ball Bearing with Flat Seats 30x62x34mm

SKF 52207 Double Thrust Ball Bearing with Flat Seats 30x62x34mm
CHF 71.00 ex VAT
CHF 71.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 55.87
19+ CHF 52.73
29+ CHF 52.10
39+ CHF 51.47
49+ CHF 50.84
74+ CHF 50.22
99+ CHF 47.08
199+ CHF 46.45
249+ CHF 45.82
499+ CHF 45.20
999+ CHF 43.94
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
SKF - High Quality
Inside Diameter:
30mm
Outside Diameter:
62mm
Width:
34mm
Technical
d 30mm
D 62mm
H 34mm
Dynamic load C 35.1 kN
Static load Co 73.5 kN
Fatigue load limit Pu 2.7 kN
Minimum load factor A 0.028
Reference speed 4000 rpm
Limiting speed 5600 rpm
Weight 0.41 kg
D1 37mm
B 8mm
r1r2 1mm
r3r4 0.3mm
da 35mm
Da max 46mm
ra max 1mm
rb max 0.3mm
