SKU: 52209-EU

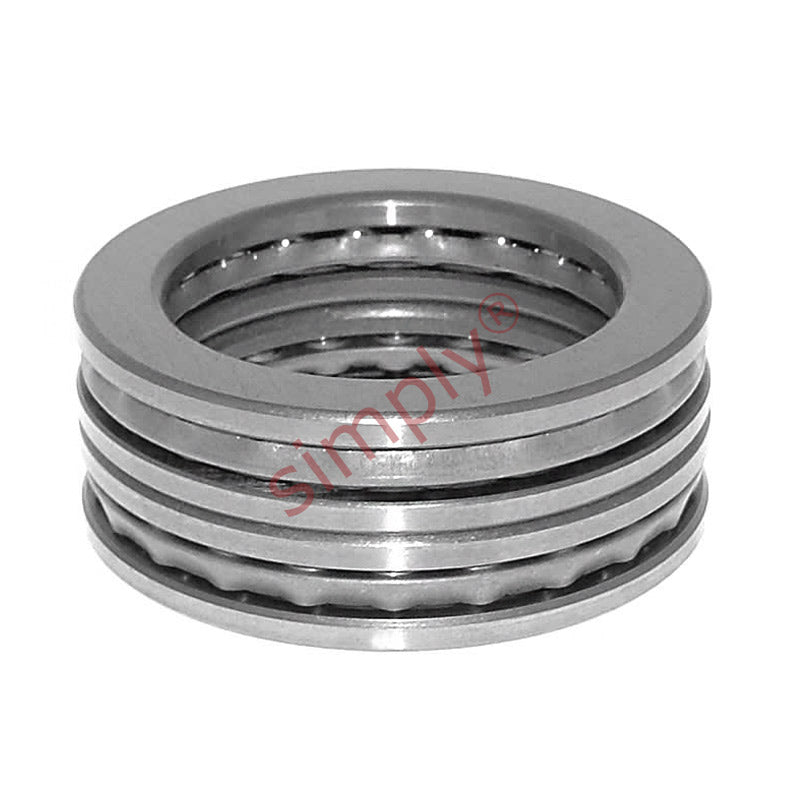

52209 Budget Double Thrust Ball Bearing with Flat Seats 35x73x37mm
52209 Budget Double Thrust Ball Bearing with Flat Seats 35x73x37mm
Regular price
CHF 78.87
ex VAT
Regular price
Sale price
CHF 78.87
ex VAT
In stock
Price Break
10+
CHF 70.19
19+
CHF 66.25
29+
CHF 65.46
39+
CHF 64.67
49+
CHF 63.88
74+
CHF 63.10
99+
CHF 59.15
199+
CHF 58.36
249+
CHF 57.58
499+
CHF 56.79
999+
CHF 55.21
Couldn't load pickup availability
Description
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 73mm
- Width:
- 37mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 73mm |
| H | 37mm |
| Dynamic load C | 39 kN |
| Static load Co | 86.5 kN |
| Fatigue load Pu | 3.2 kN |
| Minimum load factor A | 0.038 |
| Reference speed | 3600 rpm |
| Limiting speed | 5000 rpm |
| Weight | 0.6 kg |
| D1 | 47mm |
| B | 9mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| da | 45mm |
| Da max | 56mm |
| ra max | 1mm |
| rb max | 0.6mm |
