SKU: 52224-EU

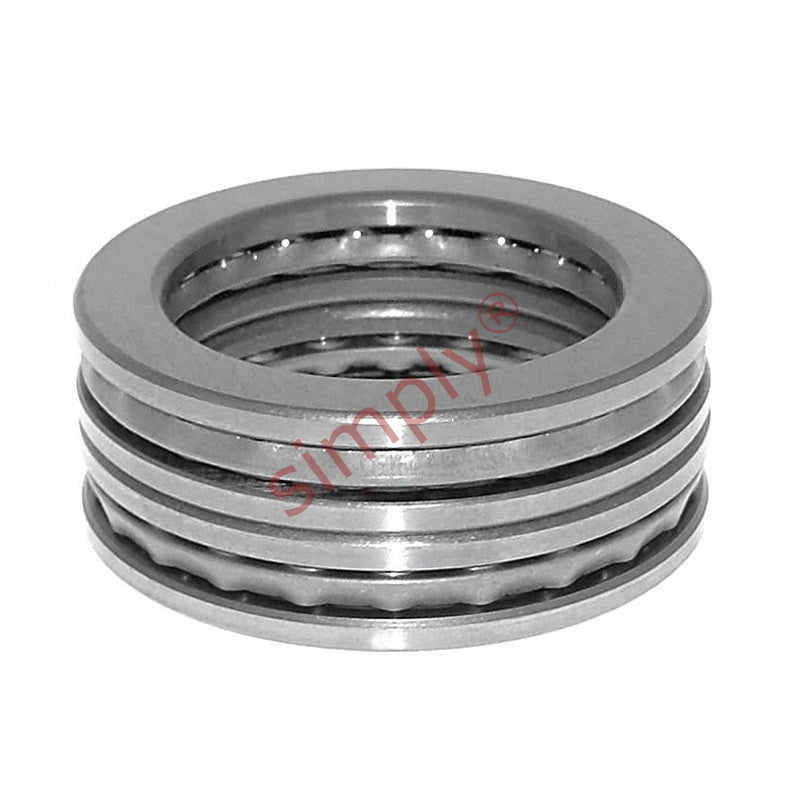

52224 Budget Double Thrust Ball Bearing with Flat Seats 100x170x68mm
52224 Budget Double Thrust Ball Bearing with Flat Seats 100x170x68mm
Regular price
CHF 601.00
ex VAT
Regular price
Sale price
CHF 601.00
ex VAT
In stock
Price Break
10+
CHF 479.09
19+
CHF 452.18
29+
CHF 446.79
39+
CHF 441.41
49+
CHF 436.03
74+
CHF 430.65
99+
CHF 403.73
199+
CHF 398.35
249+
CHF 392.96
499+
CHF 387.58
999+
CHF 376.81
Share this product
Description
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 170mm
- Width:
- 68mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 170mm |
| H | 68mm |
| Dynamic load C | 140 kN |
| Static load Co | 440 kN |
| Fatigue load Pu | 13.4 kN |
| Minimum load factor A | 1 |
| Reference speed | 1600 rpm |
| Limiting speed | 2200 rpm |
| Weight | 5.25 kg |
| D1 | 123mm |
| B | 15mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| da | 120mm |
| Da max | 140mm |
| ra max | 1mm |
| rb max | 1mm |
