SKU: 5304-2RS-KSM

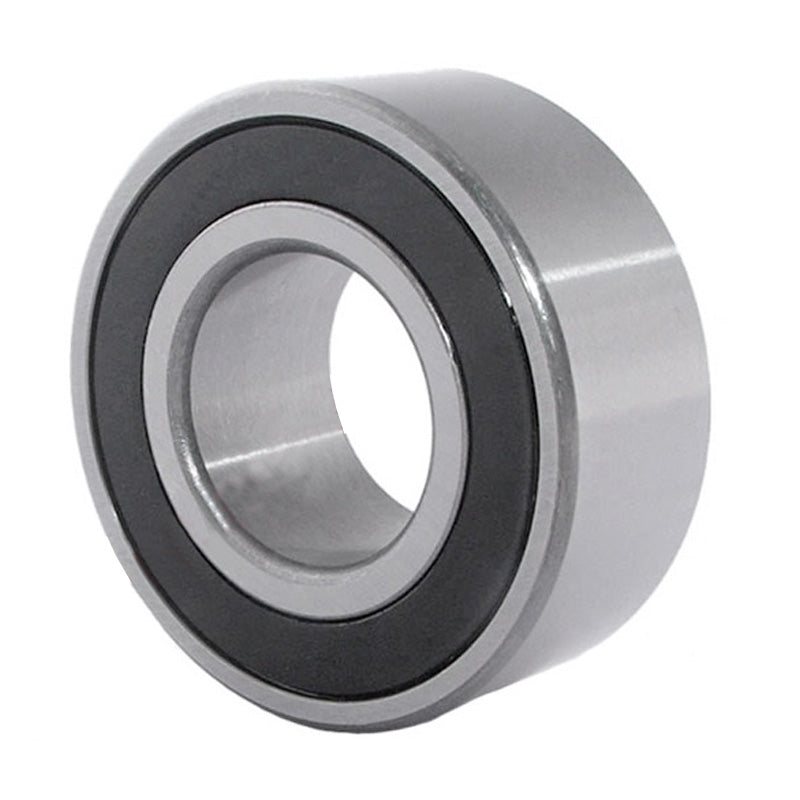

KSM 53042RS Rubber Sealed Double Row Angular Contact Ball Bearing 20x52x22.2mm
KSM 53042RS Rubber Sealed Double Row Angular Contact Ball Bearing 20x52x22.2mm
Regular price
CHF 34.00
ex VAT
Regular price
Sale price
CHF 34.00
ex VAT
Equivalent to: 33042RS
In stock
Price Break
4+
CHF 26.69
9+
CHF 25.19
19+
CHF 24.89
29+
CHF 24.59
49+
CHF 24.29
99+
CHF 23.99
179+
CHF 22.49
249+
CHF 22.19
499+
CHF 21.89
699+
CHF 21.59
999+
CHF 20.99
Share this product
Description
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 33042RS
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 33042RS
- Brand / Quality:
- KSM - Good Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 22.2mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| --- | Bearing Dimensions |
|---|---|
| d | 20mm |
| D | 52mm |
| B | 22.2mm |
| --- | Abutment Dimensions |
| a | 30.5mm |
| r1r2 min | 1.1mm |
| r1r2 max | 1mm |
| Da min | 27mm |
| da max | 45mm |
| --- | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | 20600 N |
| Basic Static Load Raiting Cor | 12700 N |
| Limiting Speed in Grease | 8000 rpm |
| Limiting Speed in Oil | 11000 rpm |
| Weight | 0.217 kg |
