SKU: 5309-ZZ-KSM

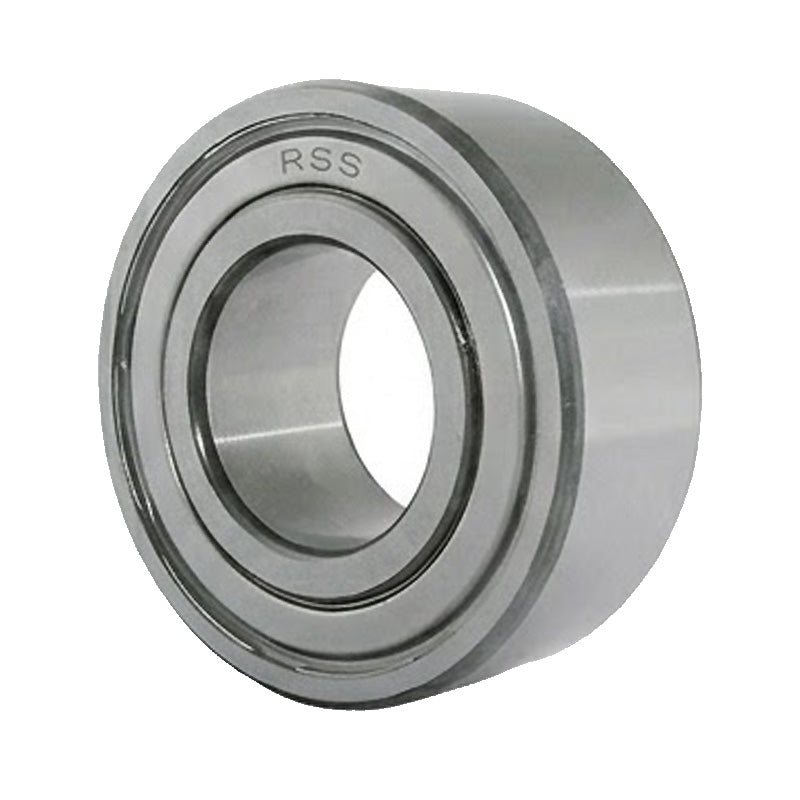

KSM 5309ZZ Metal Shielded Double Row Angular Contact Ball Bearing 45x100x39.7mm

Name: KSM 5309ZZ Metal Shielded Double Row Angular Contact Ball Bearing 45x100x39.7mm
Brand: KSM
SKU: 5309-ZZ-KSM
Price: 74.00 CHF
Availability: InStock

CHF 74.00 ex VAT

Sale Sold out

Equivalent to: 3309ZZ

In stock

Price Break

4+ CHF 58.57

9+ CHF 55.28

19+ CHF 54.62

29+ CHF 53.96

49+ CHF 53.30

99+ CHF 52.64

179+ CHF 49.35

249+ CHF 48.70

499+ CHF 48.04

699+ CHF 47.38

999+ CHF 46.06

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Metal Shielded Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Equivalent: 3309ZZ

Brand / Quality:: KSM - Good Quality
Inside Diameter:: 45mm
Outside Diameter:: 100mm
Width:: 39.7mm
Seals / Shields:: Metal Shielded

Technical

---	Bearing Dimensions
d	45mm
D	100mm
B	39.7mm
---	Abutment Dimensions
a	60mm
r1r2 min	1.5mm
r1r2 max	1.5mm
Da min	53.5mm
da max	91.5mm
---	Speeds, Weights and Loads
Basic Load Raiting Dynamic Cr	72500 N
Basic Static Load Raiting Cor	54000 N
Limiting Speed in Grease	1000 rpm
Limiting Speed in Oil	5300 rpm
Weight	1.34 kg
