SKU: 5310-2RS-KSM

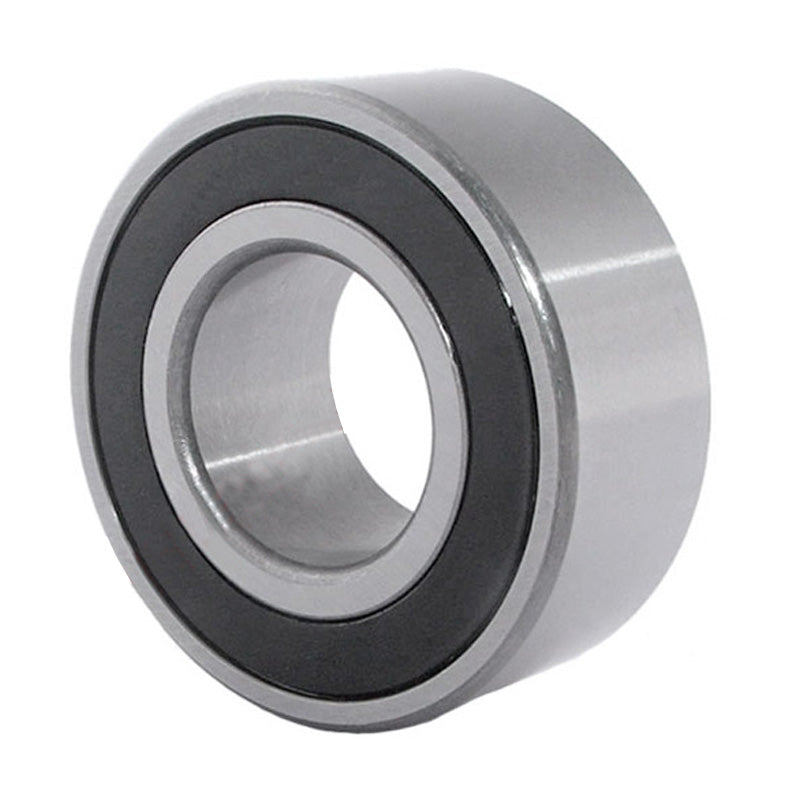

KSM 53102RS Rubber Sealed Double Row Angular Contact Ball Bearing 50x110x44.4mm
KSM 53102RS Rubber Sealed Double Row Angular Contact Ball Bearing 50x110x44.4mm
Regular price
CHF 99.00
ex VAT
Regular price
Sale price
CHF 99.00
ex VAT
Equivalent to: 33102RS
In stock
Price Break
4+
CHF 78.64
9+
CHF 74.22
19+
CHF 73.34
29+
CHF 72.45
49+
CHF 71.57
99+
CHF 70.69
179+
CHF 66.27
249+
CHF 65.38
499+
CHF 64.50
699+
CHF 63.62
999+
CHF 61.85
Share this product
Description
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 33102RS
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 33102RS
- Brand / Quality:
- KSM - Good Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 44.4mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| --- | Bearing Dimensions |
|---|---|
| d | 50mm |
| D | 110mm |
| B | 44.4mm |
| --- | Abutment Dimensions |
| a | 65.5mm |
| r1r2 min | 2mm |
| r1r2 max | 2mm |
| Da min | 60mm |
| da max | 100mm |
| --- | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | 85500 N |
| Basic Static Load Raiting Cor | 64500 N |
| Limiting Speed in Grease | 3600 rpm |
| Limiting Speed in Oil | 15500 rpm |
| Weight | 1.81 kg |
