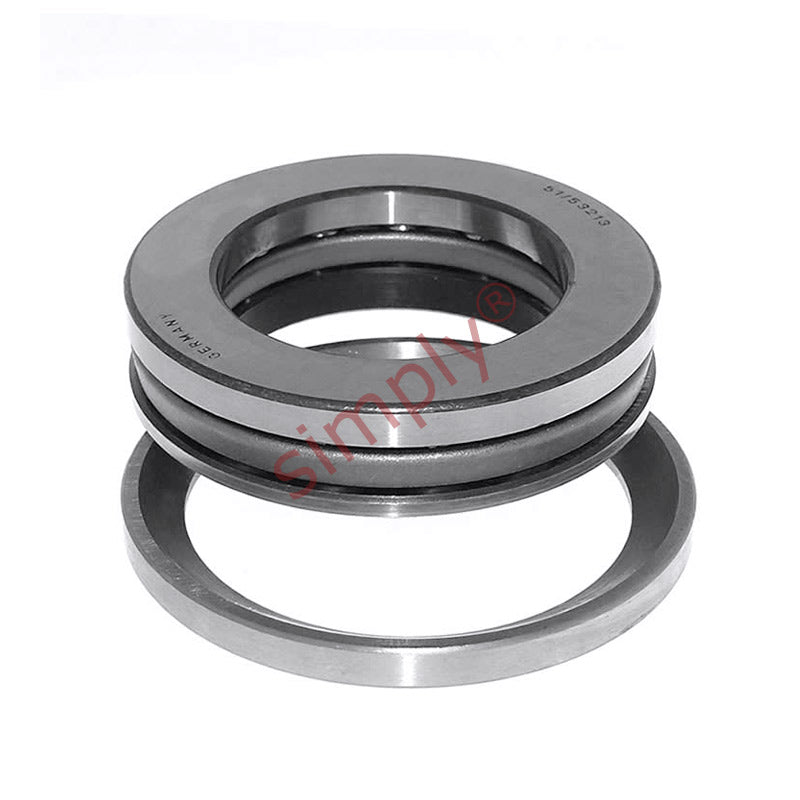

SKF 53207 Single Thrust Ball Bearing with Spherical Housing Seat U207 35x62x22mm
SKF 53207 Single Thrust Ball Bearing with Spherical Housing Seat U207 35x62x22mm
Regular price
CHF 97.00
ex VAT
Regular price
Sale price
CHF 97.00
ex VAT
In stock
Price Break
10+
CHF 77.04
19+
CHF 72.71
29+
CHF 71.84
39+
CHF 70.98
49+
CHF 70.11
74+
CHF 69.25
99+
CHF 64.92
199+
CHF 64.05
249+
CHF 63.19
499+
CHF 62.32
999+
CHF 60.59
Share this product
Description
Description
|
SKF Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. (shown but available separately). Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 22mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 62mm |
| H1 | 22mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 73.5 kN |
| Fatigue load limit Pu | 2.7 kN |
| Minimum load factor A | 0.028 |
| Reference speed | 4000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 0.28 kg |
| Seating washer | U207 |
| d1 | 62mm |
| D1 | 37mm |
| D2 | 48mm |
| D3 | 65mm |
| H | 19.87mm |
| C | 7mm |
| R | 50mm |
| s | 24mm |
| r1r2 min | 1mm |
| da max | 51mm |
| Da max | 48mm |
| ra max | 1mm |
