• 53211 Budget Single Thrust Ball Bearing with Spherical Housing Seat U211 55x90x30mm
1 1

SKU: 53211?EU

53211 Budget Single Thrust Ball Bearing with Spherical Housing Seat U211 55x90x30mm

53211 Budget Single Thrust Ball Bearing with Spherical Housing Seat U211 55x90x30mm
CHF 55.00 ex VAT
CHF 55.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 43.76
19+ CHF 41.30
29+ CHF 40.81
39+ CHF 40.31
49+ CHF 39.82
74+ CHF 39.33
99+ CHF 36.87
199+ CHF 36.38
249+ CHF 35.89
499+ CHF 35.40
999+ CHF 34.41
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

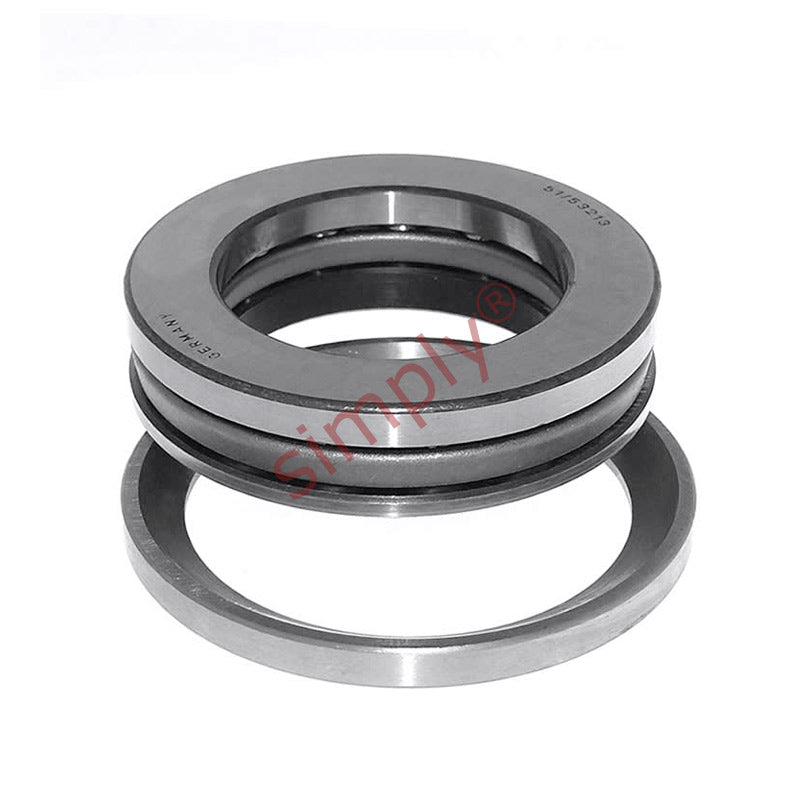

Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
55mm
Outside Diameter:
90mm
Width:
30mm
Technical
d 55mm
D 90mm
H1 30mm
Dynamic load C 61.8 kN
Static load Co 146 kN
Fatigue load limit Pu 5.4 kN
Minimum load factor A 0.11
Reference speed 2800 rpm
Limiting Speed 4000 rpm
Weight 0.75 kg
Seating Washer U211
d1 90mm
D1 57mm
D2 72mm
D3 95mm
H 27.35mm
C 9mm
R 72mm
s 35mm
r1r2 min 1mm
da max 76mm
Da max 72mm
ra max 1mm
