SKU: 53211?SKF

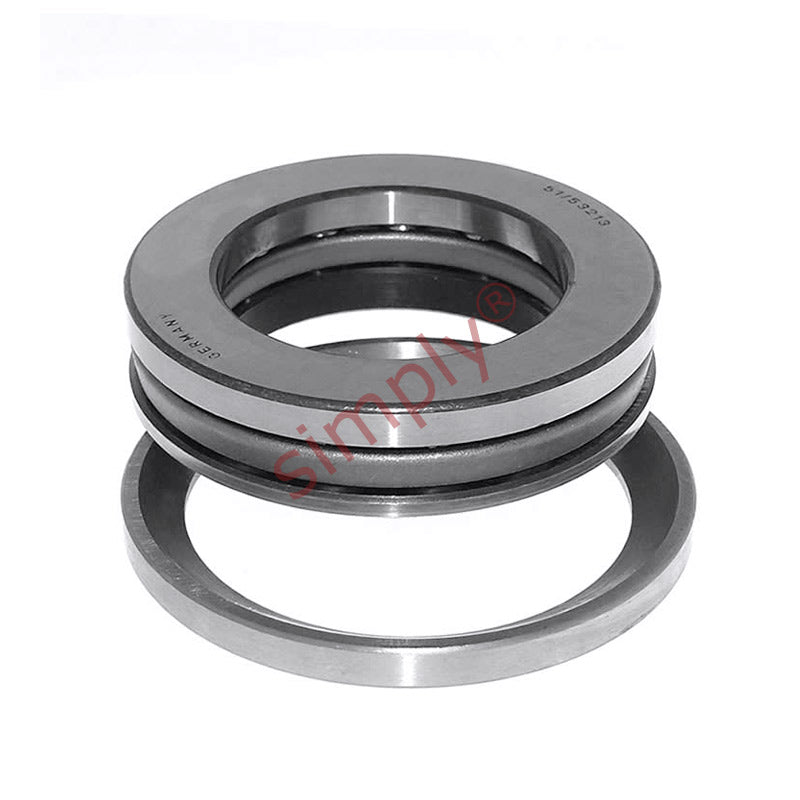

SKF 53211 Single Thrust Ball Bearing with Spherical Housing Seat U211 55x90x30mm
SKF 53211 Single Thrust Ball Bearing with Spherical Housing Seat U211 55x90x30mm
Regular price
CHF 161.46
ex VAT
Regular price
Sale price
CHF 161.46
ex VAT
In stock
Price Break
10+
CHF 143.70
19+
CHF 135.63
29+
CHF 134.01
39+
CHF 132.40
49+
CHF 130.78
74+
CHF 129.17
99+
CHF 121.10
199+
CHF 119.48
249+
CHF 117.87
499+
CHF 116.25
999+
CHF 113.02
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. (shown but available separately). Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 30mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 90mm |
| H1 | 30mm |
| Dynamic load C | 61.8 kN |
| Static load Co | 146 kN |
| Fatigue load limit Pu | 5.4 kN |
| Minimum load factor A | 0.11 |
| Reference speed | 2800 rpm |
| Limiting speed | 4000 rpm |
| Weight | 0.75 kg |
| Seating washer | U211 |
| d1 | 90mm |
| D1 | 57mm |
| D2 | 72mm |
| D3 | 95mm |
| H | 27.35mm |
| C | 9mm |
| R | 72mm |
| s | 35mm |
| r1r2 min | 1mm |
| da max | 76mm |
| Da max | 72mm |
| ra max | 1mm |
