SKU: 54309-SKF

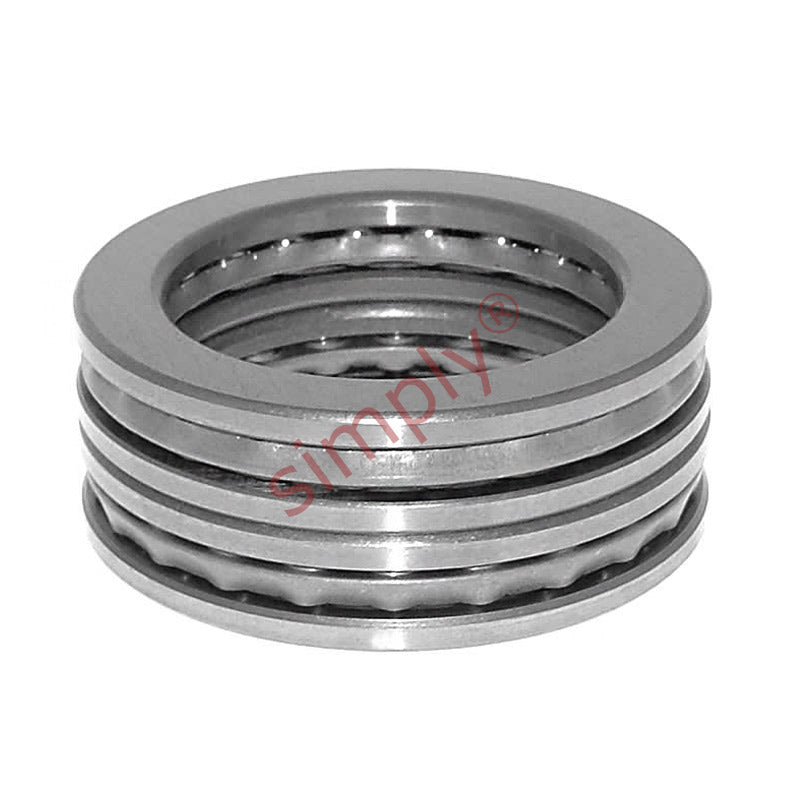

SKF 54309 Double Thrust Ball Bearing with Spherical Housing Washers 35x85x62mm
SKF 54309 Double Thrust Ball Bearing with Spherical Housing Washers 35x85x62mm
Regular price
CHF 235.93
ex VAT
Regular price
Sale price
CHF 235.93
ex VAT
In stock
Price Break
10+
CHF 209.98
19+
CHF 198.18
29+
CHF 195.82
39+
CHF 193.46
49+
CHF 191.10
74+
CHF 188.74
99+
CHF 176.95
199+
CHF 174.59
249+
CHF 172.23
499+
CHF 169.87
999+
CHF 165.15
Couldn't load pickup availability
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 85mm
- Width:
- 62mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 85mm |
| H1 | 62mm |
| Dynamic load C | 76.1 kN |
| Static load Co | 153 kN |
| Fatigue load limit Pu | 5.6 kN |
| Minimum load factor A | 0.12 |
| Reference speed | 2800 rpm |
| Limiting speed | 4000 rpm |
| Weight | 1.6 kg |
| Seating washer | U309 |
| D1 | 47mm |
| D2 | 65mm |
| D3 | 90mm |
| H | 56.2mm |
| B | 12mm |
| C | 10mm |
| R | 64mm |
| s | 21mm |
| r1r2 | 1mm |
| r3r4 | 0.6mm |
| da | 45mm |
| Da max | 65mm |
| ra max | 1mm |
| rb max | 0.6mm |
