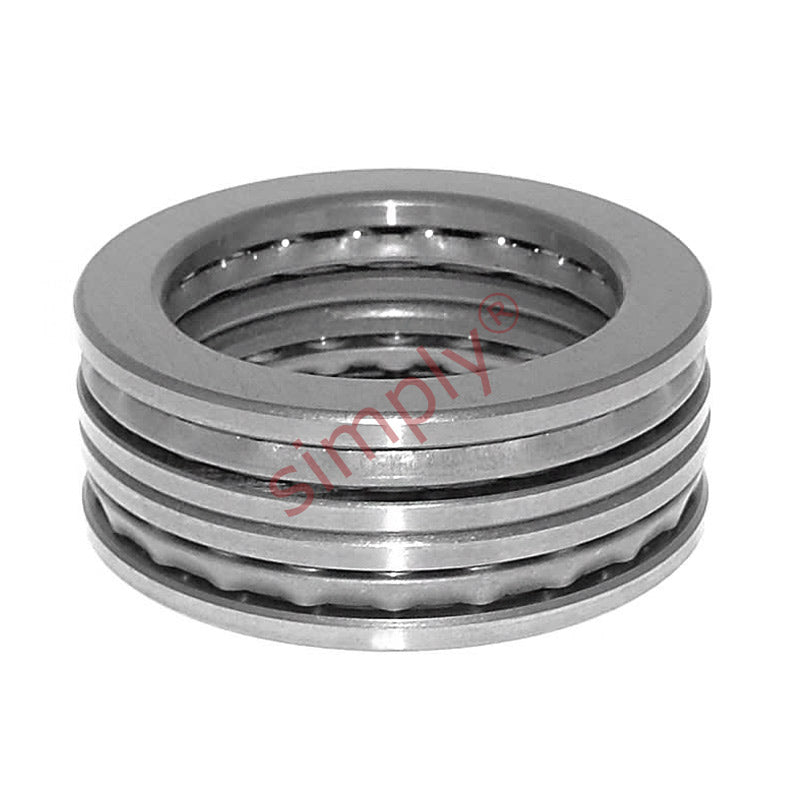

SKF 54317 Double Thrust Ball Bearing with Spherical Housing Washers 70x150x105mm
SKF 54317 Double Thrust Ball Bearing with Spherical Housing Washers 70x150x105mm
Regular price
CHF 839.00
ex VAT
Regular price
Sale price
CHF 839.00
ex VAT
In stock
Price Break
10+
CHF 667.92
19+
CHF 630.40
29+
CHF 622.89
39+
CHF 615.39
49+
CHF 607.88
74+
CHF 600.38
99+
CHF 562.85
199+
CHF 555.35
249+
CHF 547.84
499+
CHF 540.34
999+
CHF 525.33
Share this product
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 105mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| H1 | 105mm |
| Dynamic load C | 190 kN |
| Static load Co | 465 kN |
| Fatigue load limit Pu | 16 kN |
| Minimum load factor A | 1.1 |
| Reference speed | 1600 rpm |
| Limiting speed | 2200 rpm |
| Weight | 7.95 kg |
| Seating washer | U317 |
| D1 | 88mm |
| D2 | 115mm |
| D3 | 155mm |
| H | 95.2mm |
| B | 19mm |
| C | 17.5mm |
| R | 112mm |
| s | 39mm |
| r1r2 | 1.5mm |
| r3r4 | 1mm |
| da | 85mm |
| Da max | 115mm |
| ra max | 1.5mm |
| rb max | 1mm |
