SKU: 565/563B-TIM

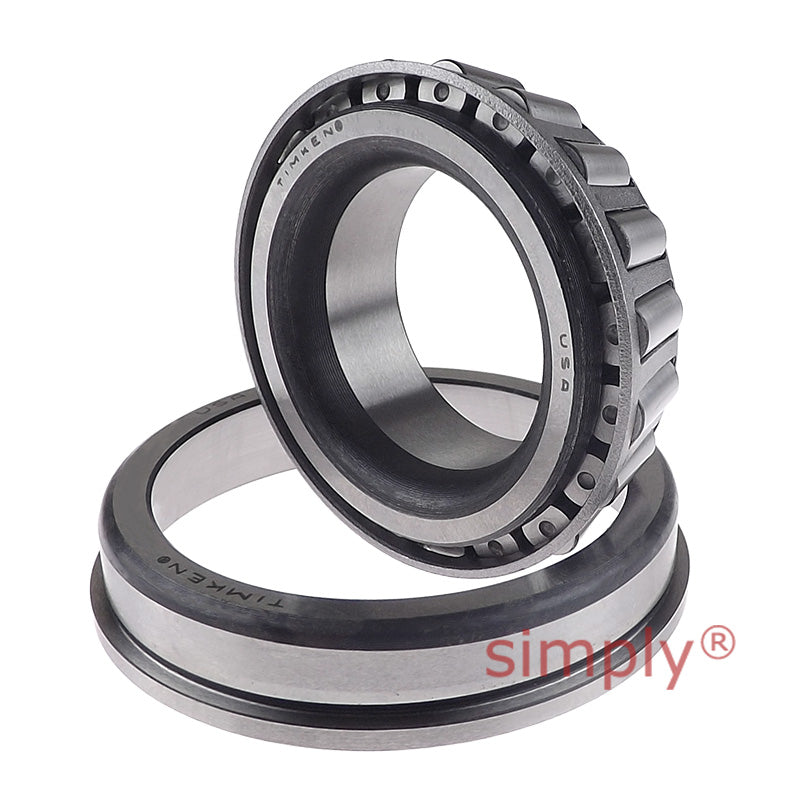

Timken 565/563B TSF Single-Row Taper Roller Bearing 2.5x5x1.437 inch
Timken 565/563B TSF Single-Row Taper Roller Bearing 2.5x5x1.437 inch
Regular price
CHF 294.00
ex VAT
Regular price
Sale price
CHF 294.00
ex VAT
In stock
Price Break
10+
CHF 233.74
20+
CHF 220.61
30+
CHF 217.98
40+
CHF 215.36
50+
CHF 212.73
75+
CHF 210.10
100+
CHF 196.97
200+
CHF 194.34
250+
CHF 191.72
500+
CHF 189.09
1000+
CHF 183.84
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Outside Diameter:
- 127mm = 5 inch
- Width:
- 36.51mm = 1.437 (1-7/16) inch
Technical
Technical
| d | 63.5mm = 2.5 inch |
|---|---|
| D | 127mm = 5 inch |
| T1 | 14.288mm = 0.5625 inch |
| Dynamic (1) C1 | 182000N |
| Factors (5) e | 0.36 |
| Factors (5) Y | 1.65 |
| Dynamic (2) C90 | 47100N |
| Dynamic (2) Ca90 | 29400N |
| Factors (5) K | 1.61 |
| Static Co | 262000N |
| Bearing B | 36.17mm = 1.424 inch |
| Bearing C | 28.575mm = 1.125 inch |
| Bearing a(3) | -8.1mm = -0.32 inch |
| Bearing D1 | 133.248mm = 5.246 inch |
| Bearing C2 | 6.35mm = 0.25 inch |
| Shaft max shaft fillet radius R(4) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter da | 73mm = 2.87 inch |
| Shaft backing shoulder diameter db | 80mm = 3.15 inch |
| Housing backing shoulder diameter Da | 121mm = 4.76 inch |
| G1 | 101 |
| G2 | 24 |
| Cg | 0.1167 |
