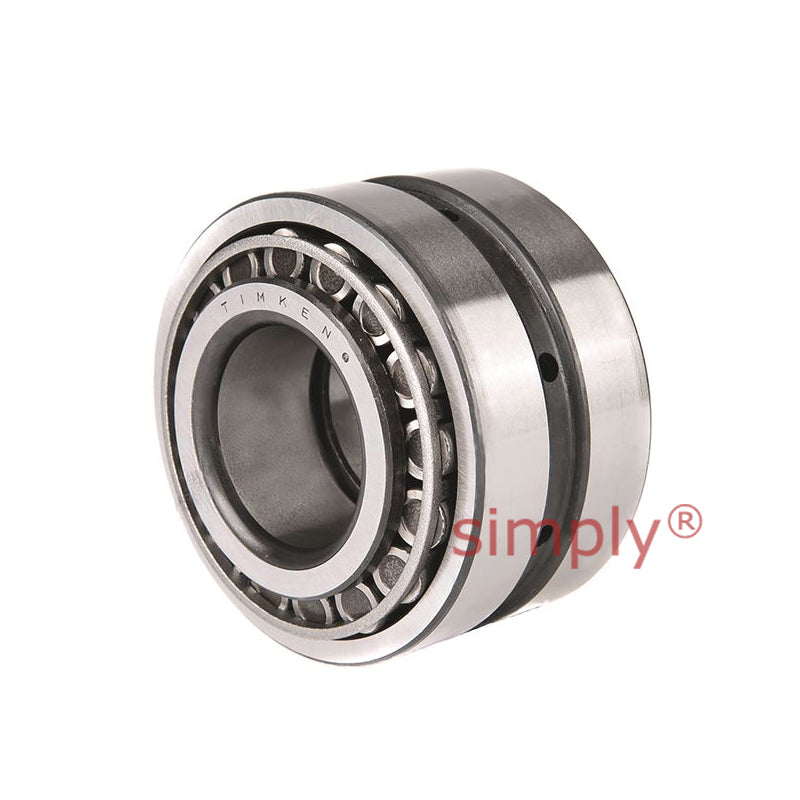

Timken 566/563D/X3S566 TDO Double Outer Race Taper Roller Bearing 2.75x5x3.1875x2.5625 inch
Timken 566/563D/X3S566 TDO Double Outer Race Taper Roller Bearing 2.75x5x3.1875x2.5625 inch
Regular price
CHF 733.65
ex VAT
Regular price
Sale price
CHF 733.65
ex VAT
In stock
Price Break
2+
CHF 696.97
5+
CHF 660.29
10+
CHF 623.60
15+
CHF 586.92
20+
CHF 572.25
30+
CHF 557.57
50+
CHF 484.21
Couldn't load pickup availability
Description
Description

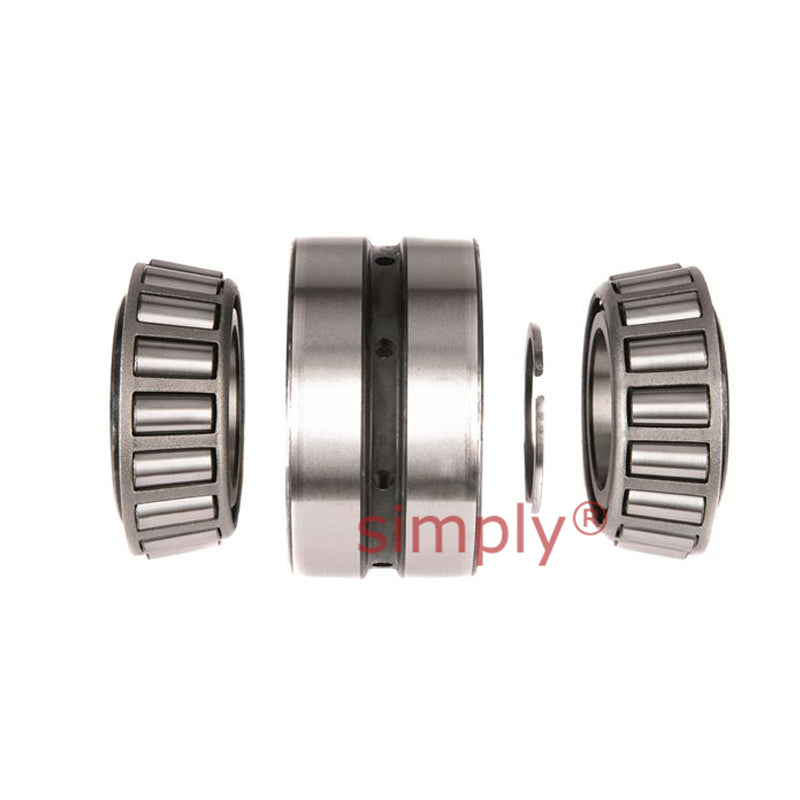

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 69.85mm = 2.75 inch
- Outside Diameter:
- 127.00mm = 5 inch
- Width:
- 80.96mm = 3.1875 inch
Technical
Technical
| d | 69.85mm = 2.75 inch |
|---|---|
| D | 127mm = 5 inch |
| T | 80.962mm = 3.1875 inch |
| C | 65.088mm = 2.5625 inch |
| Dynamic (1) C1 | 317000N |
| Factors (5) e | 0.36 |
| Factors (5) Y1 | 1.86 |
| Factors (5) Y2 | 2.76 |
| Dynamic (2) C90 | 47100N |
| Dynamic (2) Ca90 | 29400N |
| Dynamic (2) C90(2) | 82100N |
| Factors (5) K | 1.61 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 85mm = 3.35 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 119mm = 4.69 inch |
| G1 | 101 |
| G2 | 24 |
| Cg | 0.1167 |
