SKU: 60-1-NO30-DUN
Branded 60-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/4 inch Pitch
Branded 60-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/4 inch Pitch
Regular price
CHF 6.73
ex VAT
Regular price
Sale price
CHF 6.73
ex VAT
Equivalent to: 60-1-DOL
In stock
Price Break
10+
CHF 5.99
19+
CHF 5.65
29+
CHF 5.59
39+
CHF 5.52
49+
CHF 5.45
74+
CHF 5.38
99+
CHF 5.05
199+
CHF 4.98
249+
CHF 4.91
499+
CHF 4.85
999+
CHF 4.71
Couldn't load pickup availability
Description
Description

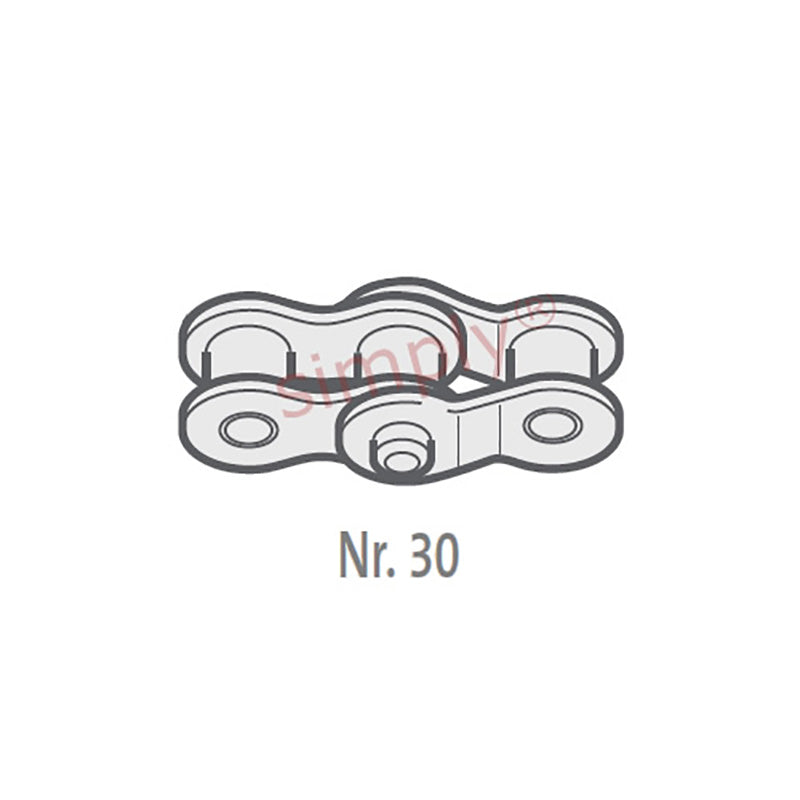

Branded DOL / No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Equivalent: 60-1-DOL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 18mm |
| Plate Width Inner max (E) | 2.4mm |
| Plate Width Outer max (F) | 2.4mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H1) | 25.9mm |
| Connecting Link Extension max (J) | 1.6mm |
| ISO606 Tensile Strength min | 31300 N |
| Weight | 1.5kg/m |
