SKU: 60-2-5MTR-DUN

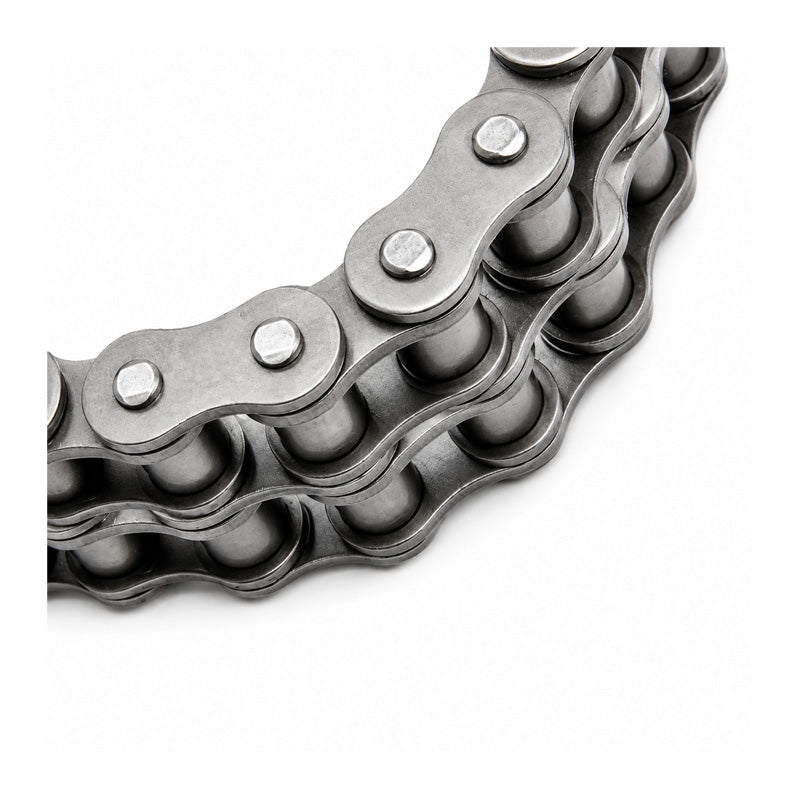

Branded ANSI/ASA60-2 Duplex Roller Chain 3/4 inch Pitch 5 Metres
Branded ANSI/ASA60-2 Duplex Roller Chain 3/4 inch Pitch 5 Metres
Regular price
CHF 174.00
ex VAT
Regular price
Sale price
CHF 174.00
ex VAT
In stock
Price Break
2+
CHF 137.99
5+
CHF 130.23
10+
CHF 128.68
29+
CHF 127.13
49+
CHF 125.58
75+
CHF 124.03
100+
CHF 116.28
200+
CHF 114.73
250+
CHF 113.18
500+
CHF 111.63
1000+
CHF 108.53
Description
Description
Major Branded Roller Chain: Manufactured to BS228, ISO 606, DIN8187, DIN8188 standards with hardened pins which prevent wear and stretch and also make it easy to dismantle. Roller chains are designed for demanding industrial and agricultural drives. Consistent quality, high-quality product.
Comprehensive range of simplex, duplex and triplex roller chains in British standard and American standard. Heavy-duty American standard roller chains are also available for extra tough conditions.
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (P) | 19.05mm = 0.75 (3/4) inch |
|---|---|
| Roller Diameter (D1 max) | 11.91mm |
| Width between inner plates (B1 min) | 12.57mm |
| Pin dia meter (D2 max) | 5.94mm |
| Pin length (L max) | 48.8mm |
| Pin length (Lc max) | 50.5mm |
| Inner plate depth (H2 max) | 18mm |
| Plate thickness (T max) | 2.42mm |
| Ultimate tensile strength (Q min) kN/LB | 63.60/14455 |
| Average tensile strength (Q0) kN | 82.1 |
| Transverse pitch (Pt) mm | 22.78 |
| Weight per meter (q) kg/m | 2.92 |
