Branded 60-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Branded 60-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
CHF 6.58
ex VAT
Regular price
Sale price
CHF 6.58
ex VAT
Equivalent to: 60-3-CL
In stock
Price Break
10+
CHF 5.86
19+
CHF 5.53
29+
CHF 5.46
39+
CHF 5.40
49+
CHF 5.33
74+
CHF 5.26
99+
CHF 4.94
199+
CHF 4.87
249+
CHF 4.80
499+
CHF 4.74
999+
CHF 4.61
Couldn't load pickup availability
Description
Description

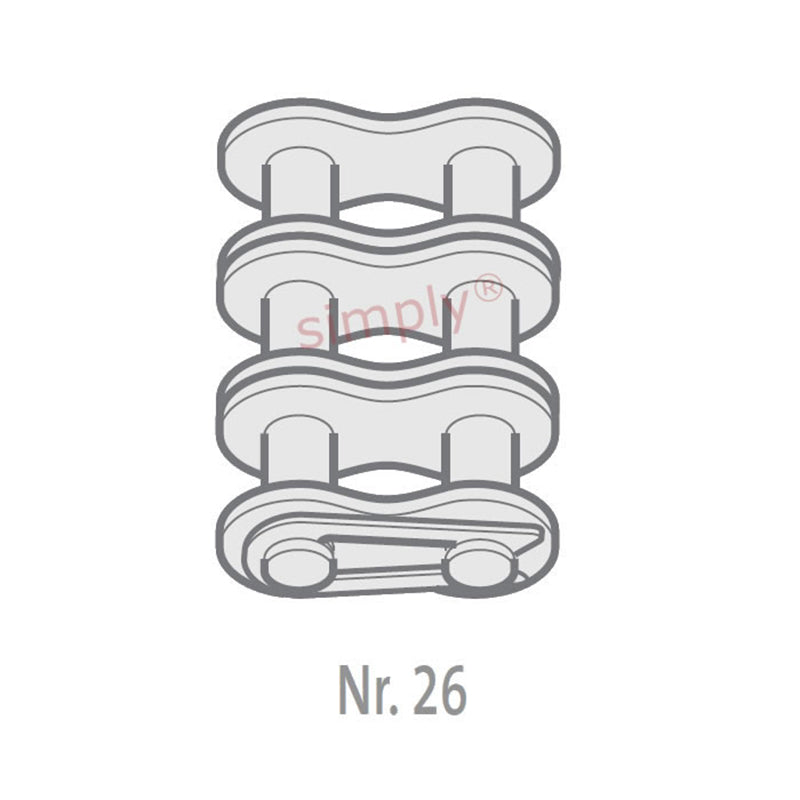

Branded CL / No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 60-3-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 18mm |
| Plate Width Inner max (E) | 2.4mm |
| Plate Width Outer max (F) | 2.4mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H1) | 71.3mm |
| Connecting Link Extension max (J) | 4.8mm |
| ISO606 Tensile Strength min | 93900 N |
| Weight | 22.78kg/m |
