SKU: 60-3-SYN-NO26-RENOLD
Renold Synergy 60-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Renold Synergy 60-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
CHF 39.00
ex VAT
Regular price
Sale price
CHF 39.00
ex VAT
In stock
Price Break
2+
CHF 30.55
5+
CHF 28.84
10+
CHF 28.49
29+
CHF 28.15
49+
CHF 27.81
75+
CHF 27.46
100+
CHF 25.75
200+
CHF 25.40
250+
CHF 25.06
500+
CHF 24.72
1000+
CHF 24.03
Description
Description

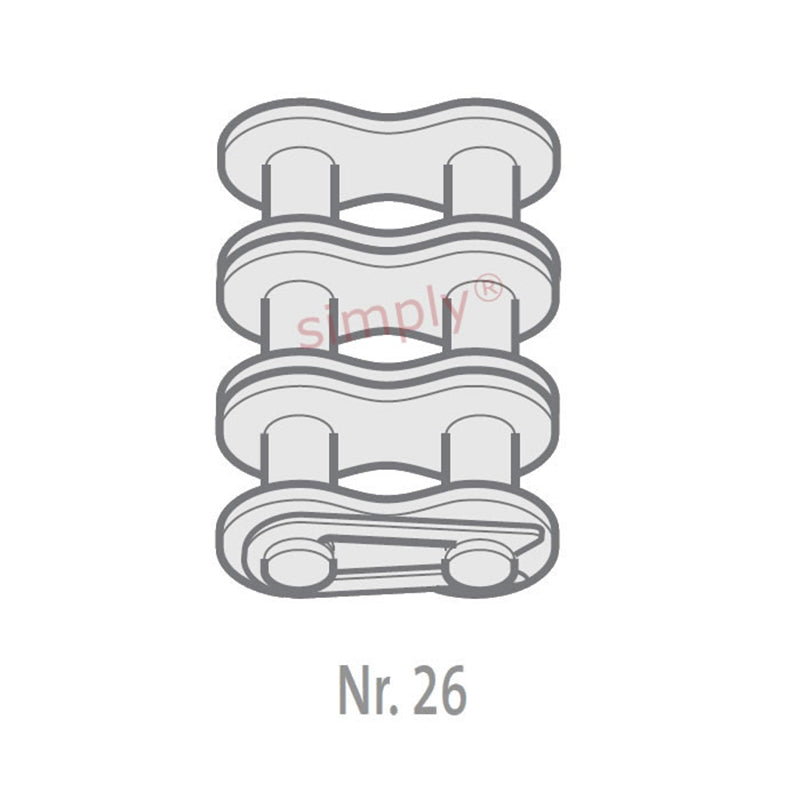

| Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 17.5mm |
| Plate Width Inner max (E) | 2.45mm |
| Plate Width Outer max (F) | 2.45mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H2) | 70.9mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 22.78mm |
| ISO606 Tensile Strength min | 93900 N |
| Weight | 0.01kg/m |
