SKU: 6001-2Z/C5VA201-SKF

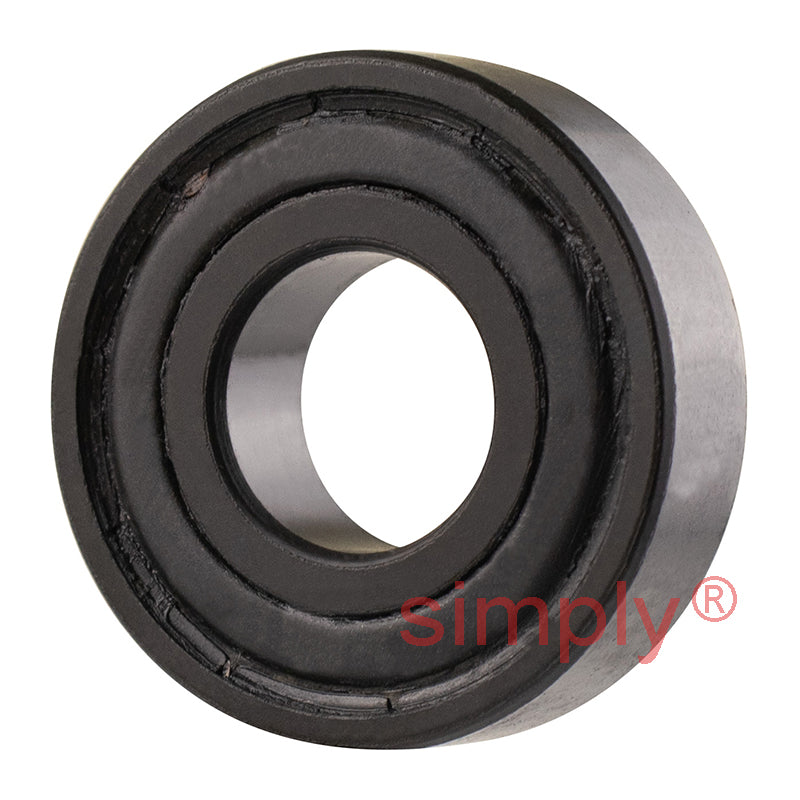

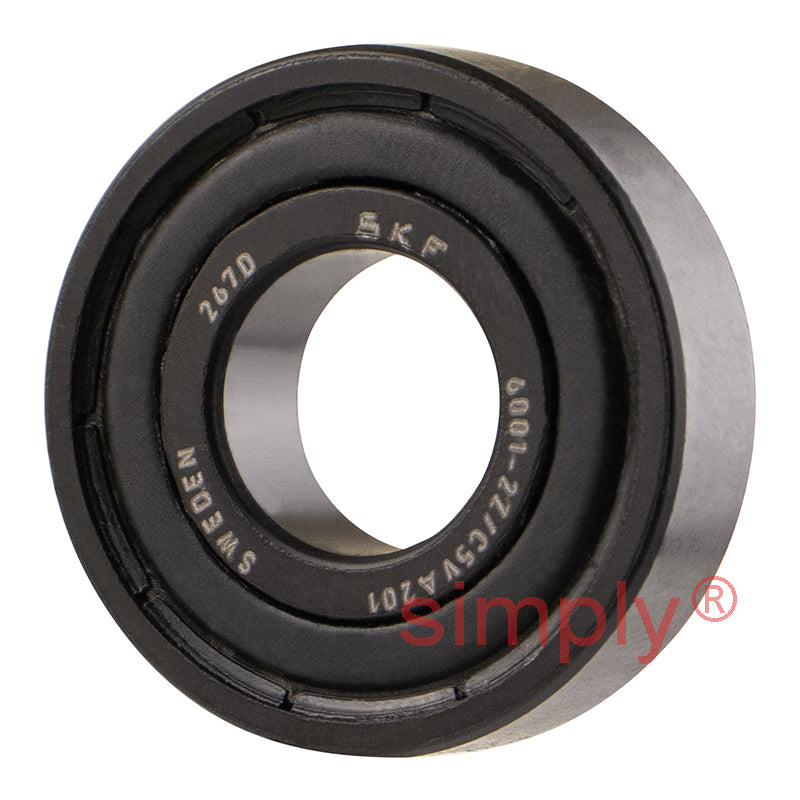

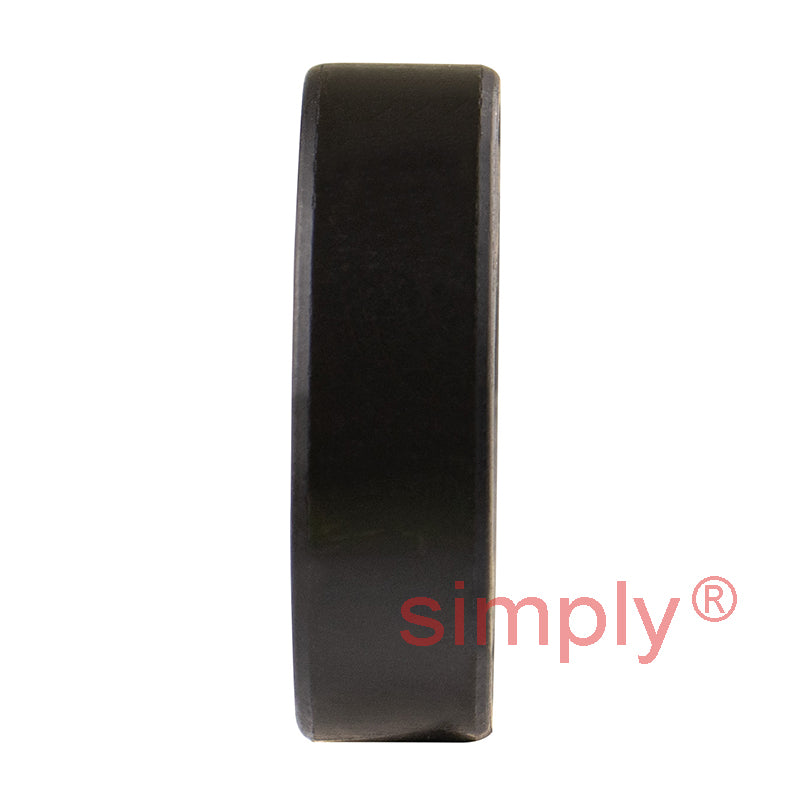

SKF 60012ZC5VA201 Single Row Deep Groove Ball Bearing High Temperature Type 12x28x8mm
SKF 60012ZC5VA201 Single Row Deep Groove Ball Bearing High Temperature Type 12x28x8mm
Regular price
CHF 66.37
ex VAT
Regular price
Sale price
CHF 66.37
ex VAT
In stock
Price Break
10+
CHF 59.07
19+
CHF 55.75
29+
CHF 55.09
39+
CHF 54.42
49+
CHF 53.76
74+
CHF 53.10
99+
CHF 49.78
199+
CHF 49.11
249+
CHF 48.45
499+
CHF 47.79
999+
CHF 46.46
Couldn't load pickup availability
Description
Description
|
SKF VA201 Series High Temperature Bearings: Supplied as an open type bearing are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 12mm |
|---|---|
| D | 28mm |
| B | 8mm |
| d1 | 16mm |
| D2 | 24.6mm |
| r1r2 | 0.3mm |
| Basic load rating Co | 2.36 kN |
| Weight | 0.022 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
