SKU: 6002-2Z/C3-FAG

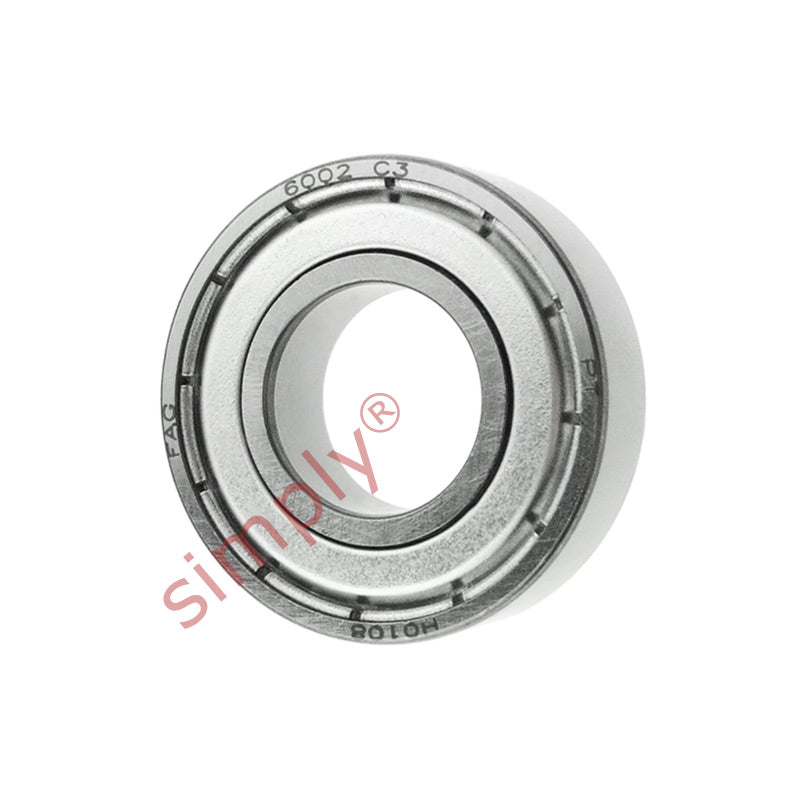

FAG 60022ZC3 Metal Shielded Deep Groove Ball Bearing 15x32x9mm
FAG 60022ZC3 Metal Shielded Deep Groove Ball Bearing 15x32x9mm
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
Equivalent to: 6002ZZEC3 6002ZZC3 6002.2ZC3 6002KDDC3 6002DDC3 60022ZRC3 6002FFC3
In stock
Price Break
10+
CHF 4.82
19+
CHF 4.55
29+
CHF 4.50
39+
CHF 4.44
49+
CHF 4.39
74+
CHF 4.34
99+
CHF 4.07
199+
CHF 4.01
249+
CHF 3.96
499+
CHF 3.90
999+
CHF 3.79
Share this product
Description
Description
|
FAG Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6002ZZEC3 6002ZZC3 6002.2ZC3 6002KDDC3 6002DDC3 60022ZRC3 6002FFC3
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 9mm |
| Dynamic load C | 5.85 kN |
| Static load Co | 2.85 kN |
| Fatigue load limit Pu | 0.12 kN |
| Reference speed | 50000 rpm |
| Limiting speed | 26000 rpm |
| Mass | 0.03 kg |
| d1 | 20.5mm |
| D2 | 28.2mm |
| r1r2 min | 0.3mm |
| da min | 17 |
