• NACHI 6002ZZEC3 Metal Shielded Deep Groove Ball Bearing 15x32x9mm
1 1

SKU: 6002-ZZE/C3-NACHI

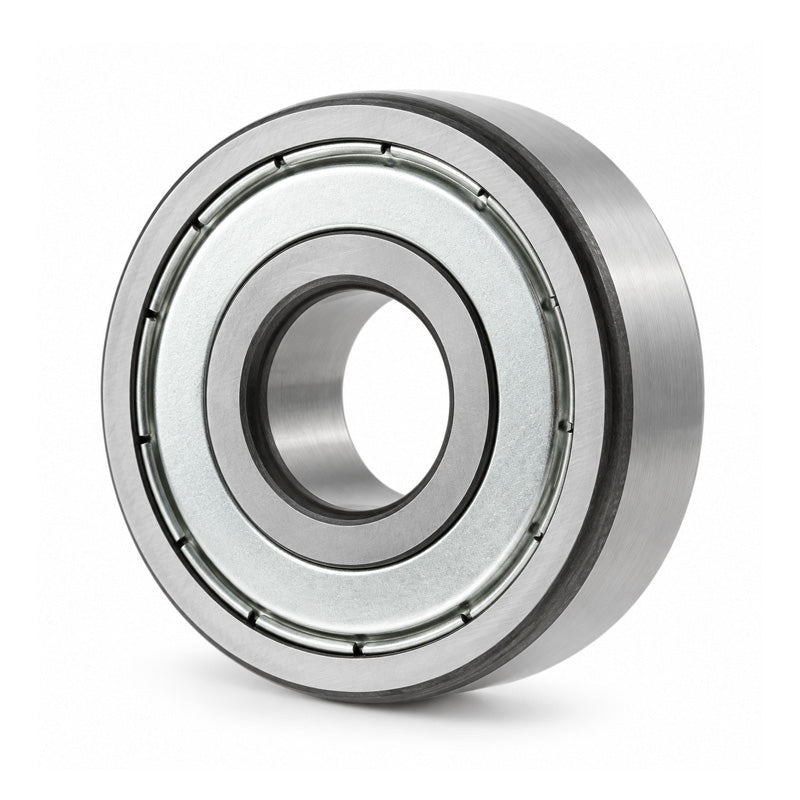

NACHI 6002ZZEC3 Metal Shielded Deep Groove Ball Bearing 15x32x9mm

NACHI 6002ZZEC3 Metal Shielded Deep Groove Ball Bearing 15x32x9mm
CHF 6.00 ex VAT
CHF 6.00 ex VAT
Sale Sold out

Equivalent to: 6002ZZC3 60022ZC3 6002.2ZC3 6002KDDC3 6002DDC3 60022ZRC3 6002FFC3

In stock

Price Break
5+ CHF 4.33
9+ CHF 4.08
19+ CHF 4.04
29+ CHF 3.99
49+ CHF 3.94
74+ CHF 3.89
99+ CHF 3.65
199+ CHF 3.60
249+ CHF 3.55
499+ CHF 3.50
999+ CHF 3.40
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance.
Benefits: High-running accuracy and high-speed operation.

Equivalent: 6002ZZC3 60022ZC3 6002.2ZC3 6002KDDC3 6002DDC3 60022ZRC3 6002FFC3
Brand / Quality:
Nachi - High Quality
Inside Diameter:
15mm
Outside Diameter:
32mm
Width:
9mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Technical
Inside Diameter d 15mm
Outside Diameter D 32mm
Width B 9mm
Min radius r 0.3mm
Dynamic load 5600 kN
Static load 2840 kN
Max speed 24000 rpm
da min 17mm
Da max 30mm
ra max 0.3mm
Weight 0.032 kg
