SKU: 6003-2NSE-NACHI

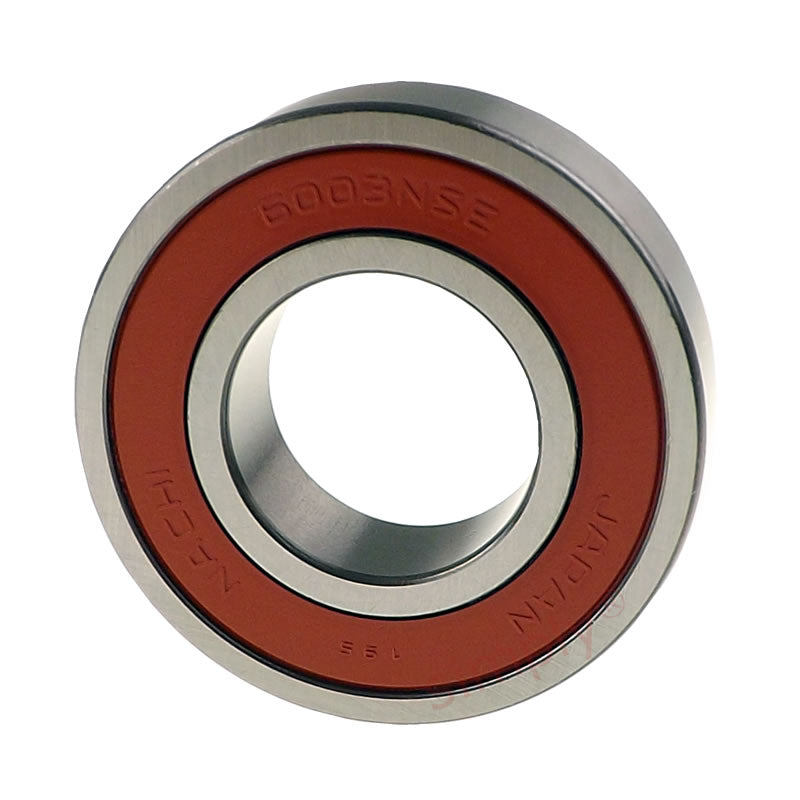

NACHI 60032NSE Contact Rubber Sealed Deep Groove Ball Bearing 17x35x10mm
NACHI 60032NSE Contact Rubber Sealed Deep Groove Ball Bearing 17x35x10mm
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
Equivalent to: 6003NSE 6003DU 6003RS 6003RSH 6003P 6003RSR 6003LU 6003DDU 60032RS 60032RS1 60032RSH 6003PP 60032RSR 60032RSR
In stock
Price Break
5+
CHF 5.15
9+
CHF 4.86
19+
CHF 4.80
29+
CHF 4.74
49+
CHF 4.68
74+
CHF 4.63
99+
CHF 4.34
199+
CHF 4.28
249+
CHF 4.22
499+
CHF 4.16
999+
CHF 4.05
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6003NSE 6003DU 6003RS 6003RSH 6003P 6003RSR 6003LU 6003DDU 60032RS 60032RS1 60032RSH 6003PP 60032RSR 60032RSR
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 35mm |
| Width B | 10mm |
| Min radius r | 0.3mm |
| Dynamic load | 6000 kN |
| Static load | 3250 kN |
| Max speed | 22000 rpm |
| da min | 19mm |
| Da max | 33mm |
| ra max | 0.3mm |
| Weight | 0.039 kg |
