SKU: 6003-2NSENR-NACHI

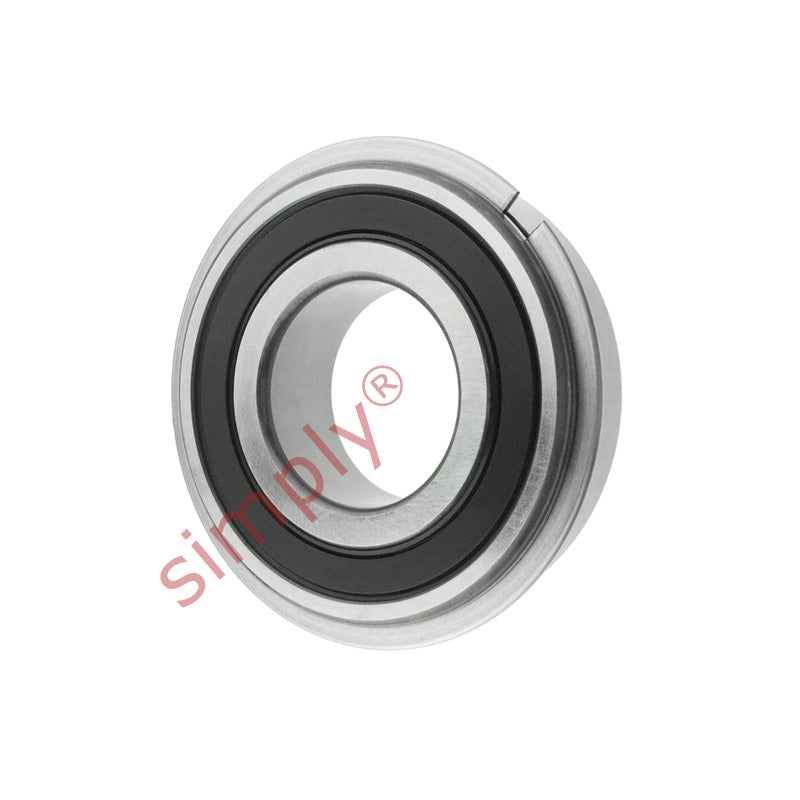

NACHI 60032NSENR Contact Rubber Sealed Deep Groove Ball Bearing with Snap Ring 17x35x10mm
NACHI 60032NSENR Contact Rubber Sealed Deep Groove Ball Bearing with Snap Ring 17x35x10mm
Regular price
CHF 20.00
ex VAT
Regular price
Sale price
CHF 20.00
ex VAT
Equivalent to: 6003NSENR
In stock
Price Break
5+
CHF 15.59
9+
CHF 14.72
19+
CHF 14.54
29+
CHF 14.37
49+
CHF 14.19
74+
CHF 14.02
99+
CHF 13.14
199+
CHF 12.97
249+
CHF 12.79
499+
CHF 12.61
999+
CHF 12.26
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6003NSENR
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 35mm |
| Width B | 10mm |
| Min radius r | 0.3mm |
| Dynamic load | 6000 kN |
| Static load | 3250 kN |
| Max speed | 22000 rpm |
| da min | 19mm |
| Da max | 33mm |
| ra max | 0.3mm |
| Weight | 0.039 kg |
