SKU: 6003-2RS/C3-KOY

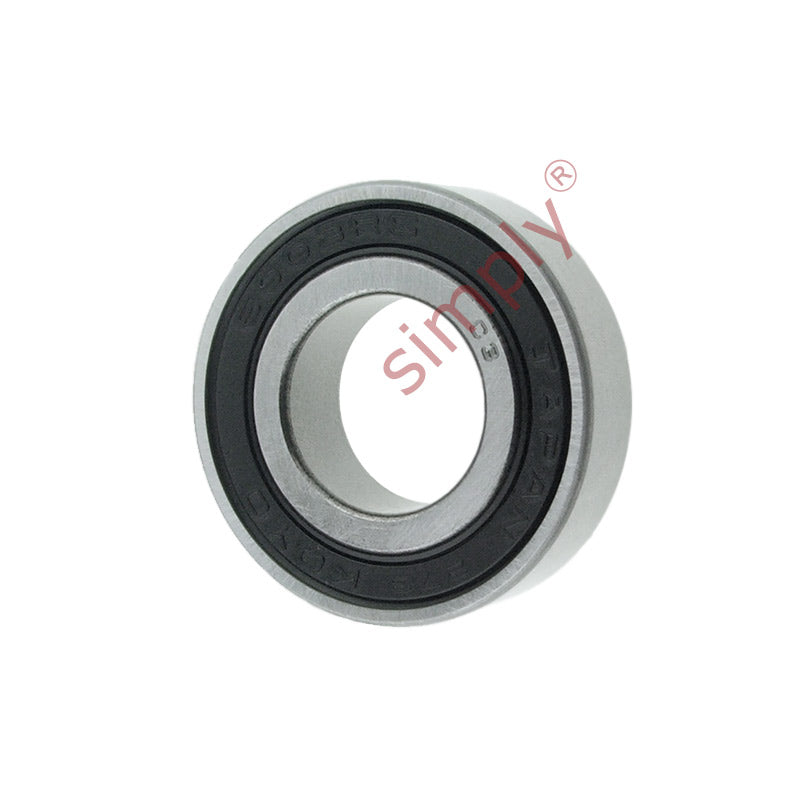

KOYO 60032RSC3 Rubber Sealed Deep Groove Ball Bearing 17x35x10mm
Equivalent to: 6003NSEC3 6003DUC3 6003RSC3 6003RSHC3 6003PC3 6003RSRC3 6003LUC3 60032NSEC3 6003DDUC3 60032RS1C3 60032RSHC3 6003PPC3 60032RSRC3 6003LLU
In stock
Price Break
Couldn't load pickup availability
Description
|
KOYO Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6003NSEC3 6003DUC3 6003RSC3 6003RSHC3 6003PC3 6003RSRC3 6003LUC3 60032NSEC3 6003DDUC3 60032RS1C3 60032RSHC3 6003PPC3 60032RSRC3 6003LLU
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 35mm |
| Width B | 10mm |
| Min radius r | 0.3mm |
| Dynamic load | 6 kN |
| Static load | 3.25 kN |
| Max speed in oil | 25000 rpm |
| Max speed in grease | 12000 rpm |
