SKU: 6003-2RSH/C3-EU

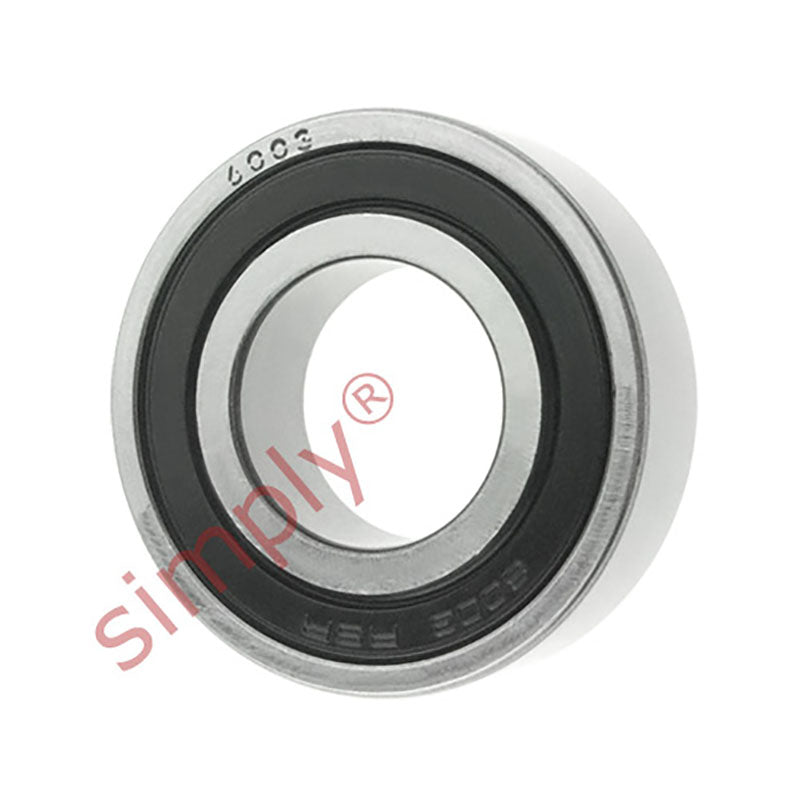

60032RSC3 Budget Rubber Sealed Deep Groove Ball Bearing 17x35x10mm
Equivalent to: 6003NSEC3 6003DUC3 6003RSC3 6003RSHC3 6003PC3 6003RSRC3 6003LUC3 60032NSEC3 6003DDUC3 6003PPC3 60032RSRC3 6003LLUC3 60032RSC3 6003RS2C3 60032RS2C3 60032RS1C3
In stock
Price Break
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6003NSEC3 6003DUC3 6003RSC3 6003RSHC3 6003PC3 6003RSRC3 6003LUC3 60032NSEC3 6003DDUC3 6003PPC3 60032RSRC3 6003LLUC3 60032RSC3 6003RS2C3 60032RS2C3 60032RS1C3
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 10mm |
| r min | 0.3mm |
| Dynamic load Cr | 6 kN |
| Static load Cor | 3.25 kN |
| Speed in grease | 21000 rpm |
| Speed in oil | 25000 rpm |
