SKU: 6003-2RSH-EU

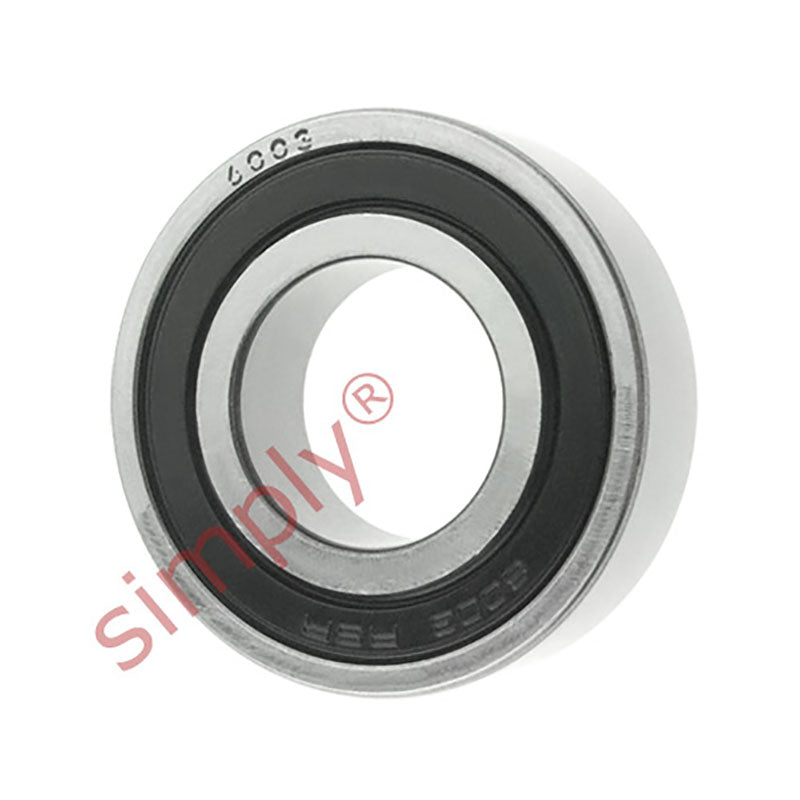

60032RS Budget Rubber Sealed Deep Groove Ball Bearing 17x35x10mm
Equivalent to: 6003NSE 6003DU 6003RS 6003RSH 6003P 6003RSR 6003LU 60032NSE 6003DDU 60032RS 60032RS1 60032RSH 6003PP 60032RSR 6003LLU 6003RS2 60032RS2 60032RSL 6003LFS 6003EE EL172RS 9103PP 103KSZZ 993L03 6103KK 10L17
In stock
Price Break
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6003NSE 6003DU 6003RS 6003RSH 6003P 6003RSR 6003LU 60032NSE 6003DDU 60032RS 60032RS1 60032RSH 6003PP 60032RSR 6003LLU 6003RS2 60032RS2 60032RSL 6003LFS 6003EE EL172RS 9103PP 103KSZZ 993L03 6103KK 10L17
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 10mm |
| r min | 0.3mm |
| Dynamic load Cr | 6 kN |
| Static load Cor | 3.25 kN |
| Speed in grease | 21000 rpm |
| Speed in oil | 25000 rpm |
