SKU: 6003-2RSR/C3-FAG

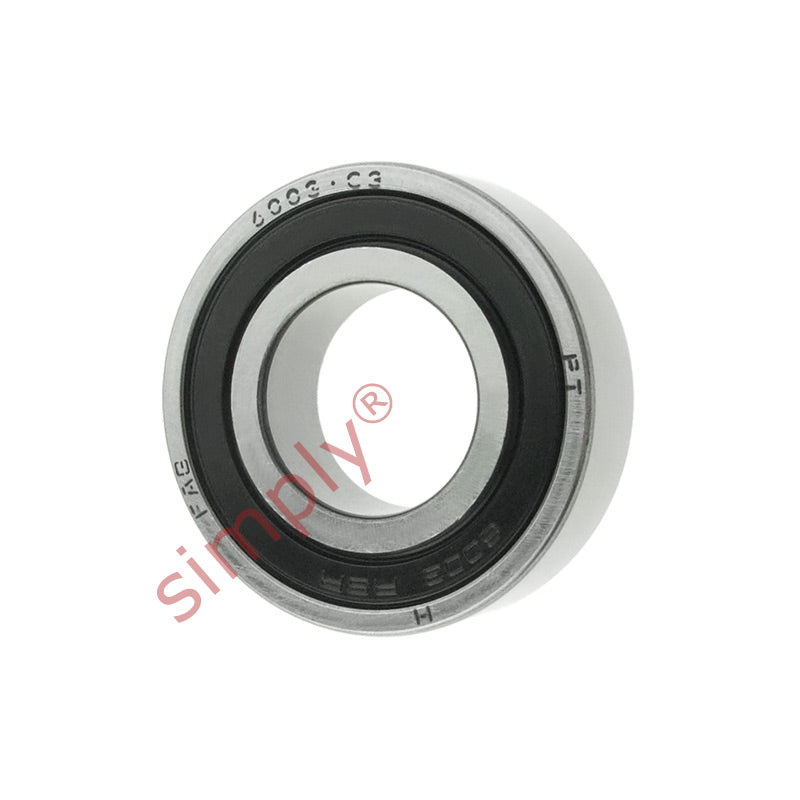

FAG 60032RSRC3 Rubber Sealed Deep Groove Ball Bearing 17x35x10mm
FAG 60032RSRC3 Rubber Sealed Deep Groove Ball Bearing 17x35x10mm
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
Equivalent to: 6003NSEC3 6003DUC3 6003RSC3 6003RSHC3 6003PC3 6003RSRC3 6003LUC3 60032NSEC3 6003DDUC3 60032RSC3 60032RS1C3 60032RSHC3 6003PPC3 6003LLU
In stock
Price Break
10+
CHF 5.73
19+
CHF 5.41
29+
CHF 5.35
39+
CHF 5.28
49+
CHF 5.22
74+
CHF 5.15
99+
CHF 4.83
199+
CHF 4.77
249+
CHF 4.70
499+
CHF 4.64
999+
CHF 4.51
Share this product
Description
Description
|
FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6003NSEC3 6003DUC3 6003RSC3 6003RSHC3 6003PC3 6003RSRC3 6003LUC3 60032NSEC3 6003DDUC3 60032RSC3 60032RS1C3 60032RSHC3 6003PPC3 6003LLU
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 10mm |
| Dynamic load C | 6.37 kN |
| Static load Co | 3.25 kN |
| Fatigue load limit Pu | 0.137 kN |
| Reference speed | 45000 rpm |
| Limiting speed | 13000 rpm |
| Mass | 0.039 kg |
| d2 | 20.7mm |
| D2 | 31.4mm |
| r1r2 min | 0.3mm |
| da min | 19 |
