SKU: 6003-ZZE-NACHI

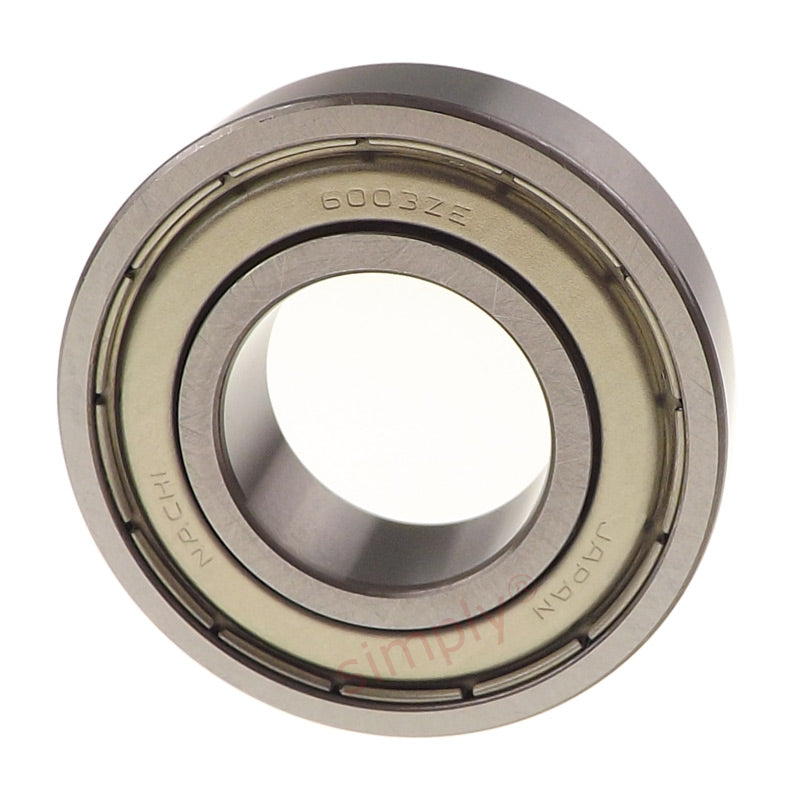

NACHI 6003ZZE Metal Shielded Deep Groove Ball Bearing 17x35x10mm
NACHI 6003ZZE Metal Shielded Deep Groove Ball Bearing 17x35x10mm
Regular price
CHF 5.77
ex VAT
Regular price
Sale price
CHF 5.77
ex VAT
Equivalent to: 6003ZZ 60032Z 6003.2Z 6003KDD 6003DD 60032ZR 6003FF
In stock
Price Break
10+
CHF 5.14
19+
CHF 4.85
29+
CHF 4.79
39+
CHF 4.73
49+
CHF 4.67
74+
CHF 4.62
99+
CHF 4.33
199+
CHF 4.27
249+
CHF 4.21
499+
CHF 4.15
999+
CHF 4.04
Couldn't load pickup availability
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6003ZZ 60032Z 6003.2Z 6003KDD 6003DD 60032ZR 6003FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 35mm |
| Width B | 10mm |
| Min radius r | 0.3mm |
| Dynamic load | 6000 kN |
| Static load | 3250 kN |
| Max speed | 22000 rpm |
| da min | 19mm |
| Da max | 33mm |
| ra max | 0.3mm |
| Weight | 0.039 kg |
