• NTN 6003NR Open Type Deep Groove Ball Bearing with Snap Ring 17x35x10mm
1 1

SKU: 6003NR-NTN

NTN 6003NR Open Type Deep Groove Ball Bearing with Snap Ring 17x35x10mm

NTN 6003NR Open Type Deep Groove Ball Bearing with Snap Ring 17x35x10mm
CHF 9.00 ex VAT
CHF 9.00 ex VAT
Sale Sold out

Equivalent to: 6003NRCM 9103KG 103KSG 43L03

In stock

Price Break
3+ CHF 6.94
5+ CHF 6.55
10+ CHF 6.47
25+ CHF 6.40
49+ CHF 6.32
74+ CHF 6.24
99+ CHF 5.85
199+ CHF 5.77
249+ CHF 5.69
499+ CHF 5.62
999+ CHF 5.46
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available


Equivalent: 6003NRCM 9103KG 103KSG 43L03
Brand / Quality:
NTN - High Quality
Inside Diameter:
17mm
Outside Diameter:
35mm
Width:
10mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 17mm
D 35mm
B 10mm
r<sub>s</sub> min 0.3mm
rNS Min. 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 7.55 kN
C<sub>or</sub> 3.35 kN
C<sub>u</sub> 0.243 kN
f<sub>0</sub> 13.6 kN
Grease 20000 rpm
Oil 24000 rpm

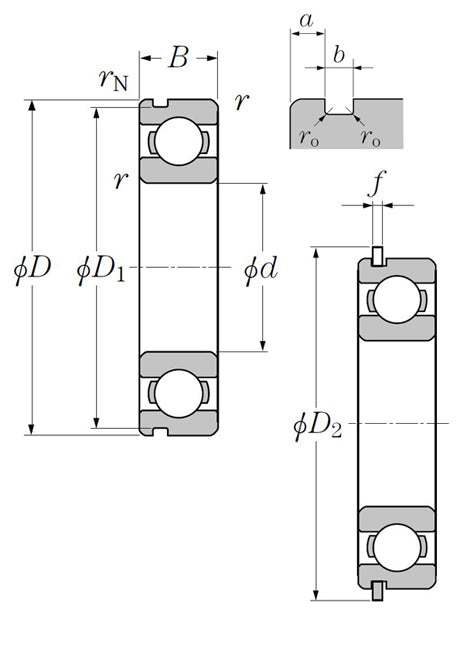

--- Snap Ring Dimensions
D<sub>1</sub> Max. 33.17mm
a Max. 2.06mm
b Min. 1.35mm
r<sub>o</sub> Max. 0.4mm
D<sub>2</sub> Max. 39.7mm
f Max. 1.12mm
--- Fitting Dimensions
d<sub>a</sub> Min. 19mm
d<sub>a</sub> Max. 21mm
D<sub>a</sub> Max. 33mm
D<sub>X</sub> (approx) 40.5mm
C<sub>Y</sub> Max. 2.9mm
C<sub>Z</sub> Min. 1.2mm
r<sub>as</sub> Max. 0.3mm
r<sub>Nas</sub> Max. 0.3mm
Weight 0.039 kg
