SKU: 6004-2Z/C3-KOY

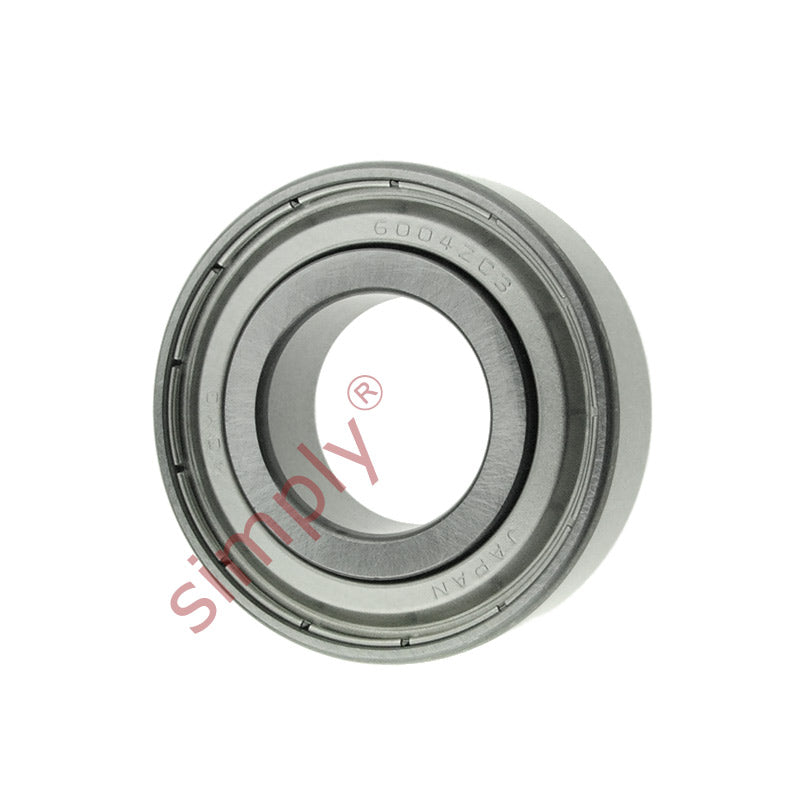

KOYO 60042ZC3 Metal Shielded Deep Groove Ball Bearing 20x42x12mm
KOYO 60042ZC3 Metal Shielded Deep Groove Ball Bearing 20x42x12mm
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
Equivalent to: 6004ZZEC3 6004ZZC3 6004.2ZC3 6004KDDC3 6004DDC3 60042ZRC3 6004FFC3
In stock
Price Break
5+
CHF 5.89
9+
CHF 5.56
19+
CHF 5.50
29+
CHF 5.43
49+
CHF 5.36
74+
CHF 5.30
99+
CHF 4.97
199+
CHF 4.90
249+
CHF 4.83
499+
CHF 4.77
999+
CHF 4.64
Share this product
Description
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6004ZZEC3 6004ZZC3 6004.2ZC3 6004KDDC3 6004DDC3 60042ZRC3 6004FFC3
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 20mm |
|---|---|
| Outside Diameter D | 42mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 9.4 kN |
| Static load | 5.05 kN |
| Max speed in oil | 21000 rpm |
| Max speed in grease | 10000 rpm |
