SKU: 6004-2Z-HT-330
6004ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 20x42x12mm Max 240rpm
6004ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 20x42x12mm Max 240rpm
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
Equivalent to: 60042ZVA201 60042ZVA208 60042ZVA228
In stock
Price Break
3+
CHF 7.86
5+
CHF 7.42
10+
CHF 7.33
15+
CHF 7.24
20+
CHF 7.15
30+
CHF 7.06
40+
CHF 6.62
50+
CHF 6.53
60+
CHF 6.45
75+
CHF 6.36
100+
CHF 6.18
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Equivalent: 60042ZVA201 60042ZVA208 60042ZVA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 12mm
- Temperature Range:
- High Temp
Technical
Technical

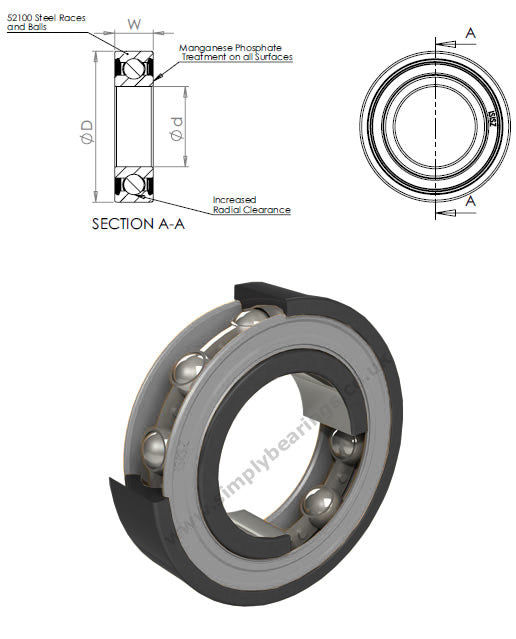

| Inside diameter d | 20mm |
|---|---|
| Outside diameter D | 42mm |
| Width W | 12mm |
| Static load max | 2.89 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 240 rpm |
| Weight | 69 g |
