SKU: 6005NR-MB

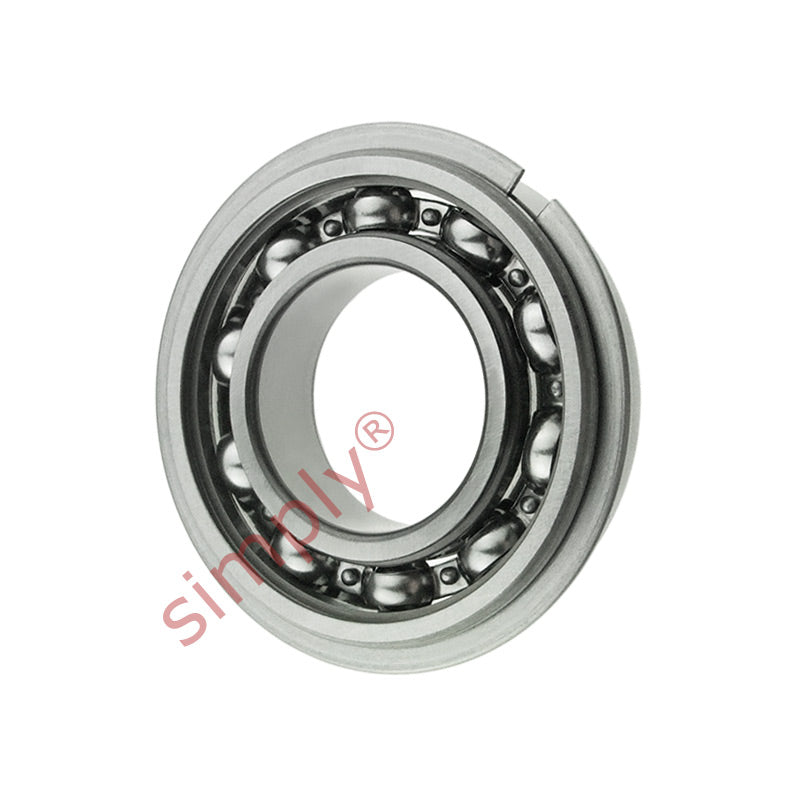

6005NR Deep Groove Ball Bearing with Snap Ring 25x47x12mm
6005NR Deep Groove Ball Bearing with Snap Ring 25x47x12mm
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
In stock
Price Break
10+
CHF 12.43
19+
CHF 11.73
29+
CHF 11.59
39+
CHF 11.45
49+
CHF 11.31
74+
CHF 11.17
99+
CHF 10.48
199+
CHF 10.34
249+
CHF 10.20
499+
CHF 10.06
999+
CHF 9.78
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 12mm |
| Dyamic load C | 11.9 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.275 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 20000 rpm |
| Mass | 0.08 kg |
| d1 | 32mm |
| d2 | 40mm |
| D2 | 42.2mm |
| r1r2 min | 0.6mm |
| da min | 28.2 |
