SKU: 6006LLUNR/2AS-NTN

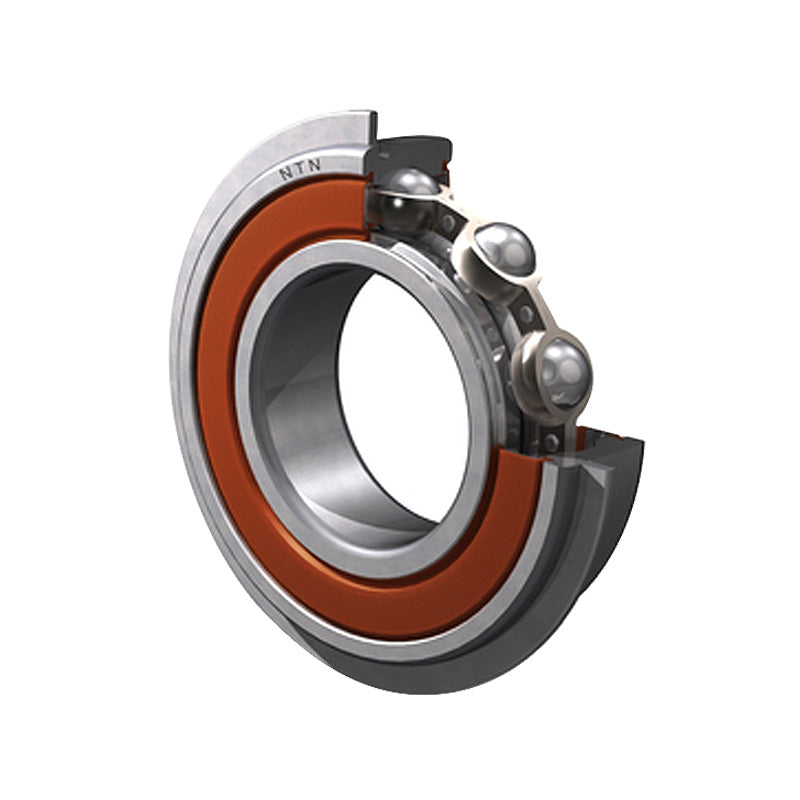

NTN 6006LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 30x55x13mm
Equivalent to: 6006LLUNRCM 6006LLUNR 6006NSENR 6006DUNR 6006RSNR 6006RSHNR 6006PNR 6006RSRNR 6006LUNR 60062NSENR 6006DDUNR 60062RSNR 6006-2RSNR 60062RS1NR 60062RSHNR 6006PPNR 60062RSRNR 6006LLUNR 6006RS2NR 60062RS2NR 60062RSLNR 6006LFSNR 6006EENR 9106NPPG 106KSZZG Z4993L06
In stock
Price Break
Description
Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 30mm |
| D | 55mm |
| B | 13mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 14.7 kN |
| C<sub>or</sub> | 8.3 kN |
| C<sub>u</sub> | 0.65 kN |
| f<sub>0</sub> | 14.8 |
| --- | Fitting Dimensions |
| Speed | 7700rpm |
| D<sub>1</sub> Max. | 52.6mm |
| a Max. | 2.08mm |
| b Min. | 1.35mm |
| r<sub>o</sub> Max. | 0.4mm |
