SKU: 6006NR-NSK

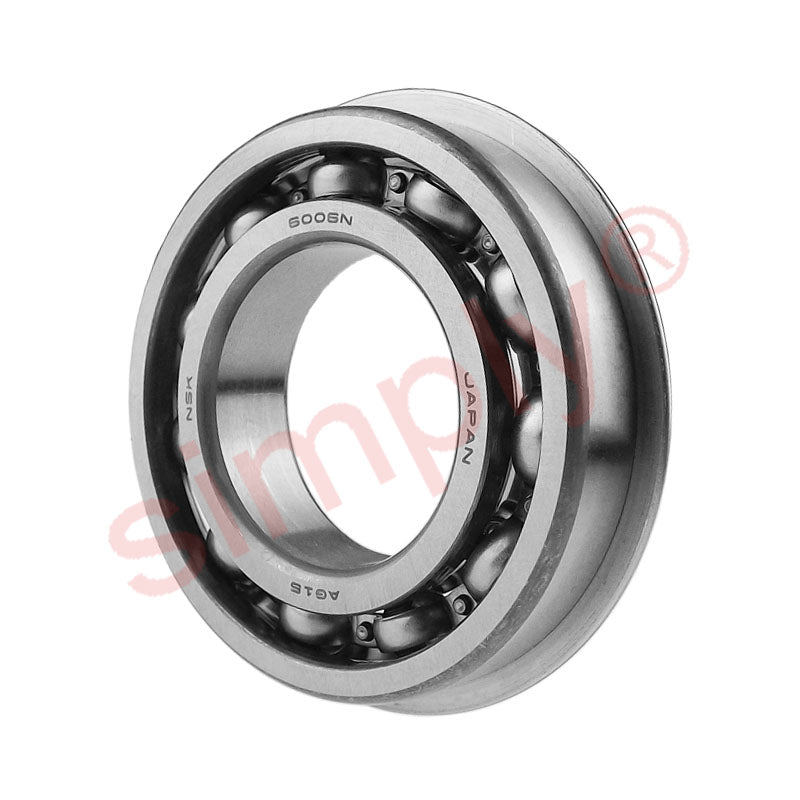

NSK 6006NR Open Type Deep Groove Ball Bearing With Snap Ring 30x55x13mm
NSK 6006NR Open Type Deep Groove Ball Bearing With Snap Ring 30x55x13mm
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
In stock
Price Break
4+
CHF 6.87
10+
CHF 6.48
20+
CHF 6.41
30+
CHF 6.33
50+
CHF 6.25
75+
CHF 6.18
100+
CHF 5.79
200+
CHF 5.71
250+
CHF 5.64
500+
CHF 5.56
1000+
CHF 5.40
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| B | 13mm |
| r min | 0.5mm |
| Dynamic load Cr | 13200 N (13200 kgf) |
| Static load Cor | 8300 N (8300 kgf) |
| Speed in grease | 13000 rpm |
| Speed in oil | 15000 rpm |
| a max | 2.08mm |
| b min | 1.35mm |
| D1 max | 52.6mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 60.7mm |
| f max | 1.12mm |
| da2 min | 60.7mm |
| da2max | 1.12mm |
| Da2max | 50mm |
| ra max | 1mm |
| Dx min | 61.5mm |
| Cy max | 2.9mm |
| Weight | 0.116 kg |
