SKU: 6007-2Z/C4VT127-SKF

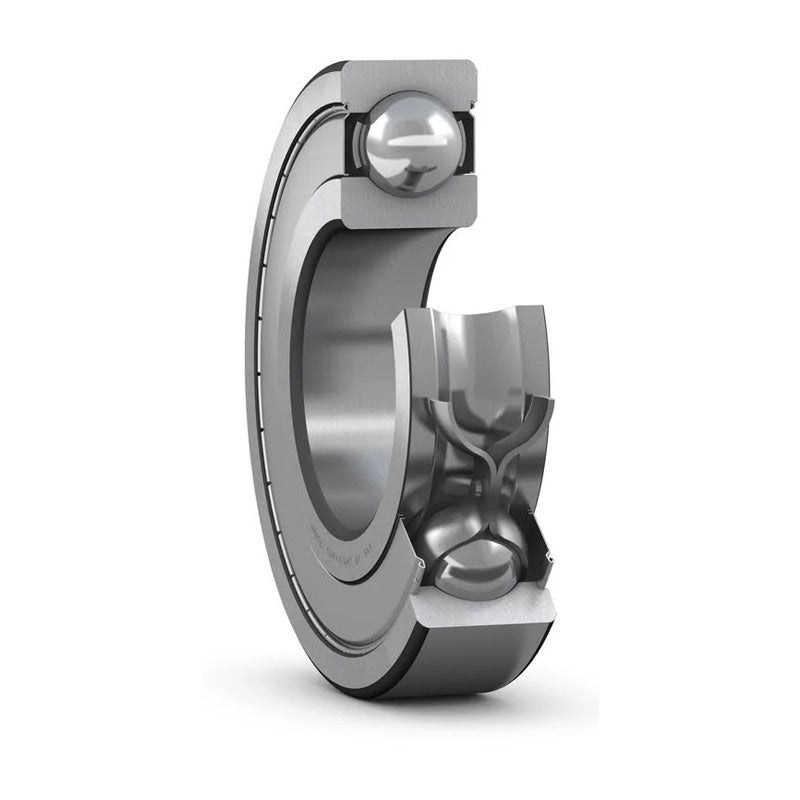

SKF 60072ZC4VT127 Metal Shielded Deep Groove Ball Bearing 35x62x14mm
SKF 60072ZC4VT127 Metal Shielded Deep Groove Ball Bearing 35x62x14mm
Regular price
CHF 199.00
ex VAT
Regular price
Sale price
CHF 199.00
ex VAT
Equivalent to: 6007ZZC4VT127 60072Z 60072ZRC4VT127
In stock
Price Break
4+
CHF 157.87
10+
CHF 149.00
20+
CHF 147.23
30+
CHF 145.45
50+
CHF 143.68
75+
CHF 141.90
100+
CHF 133.04
200+
CHF 131.26
250+
CHF 129.49
500+
CHF 127.71
1000+
CHF 124.17
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6007ZZC4VT127 60072Z 60072ZRC4VT127
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 14mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C4
Technical
Technical
| d | 35mm |
|---|---|
| D | 62mm |
| B | 14mm |
| Dynamic load C | 16.8 kN |
| Static load Co | 10.2 kN |
| Fatigue load limit Pu | 0.44 kN |
| Reference speed | 24000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.16 kg |
| d1 | 43.8mm |
| D2 | 55.6mm |
| r1r2 min | 1mm |
| da min | 39.6mm |
| Da max | 57.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 15 |
