SKU: 6007C3-NTN

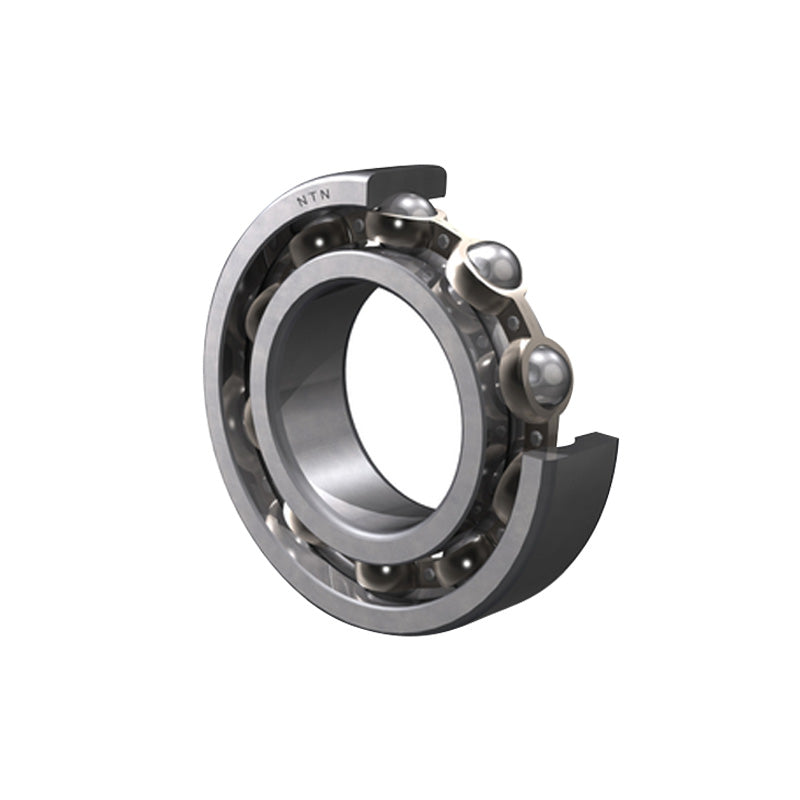

NTN 6007C3 Open Type Deep Groove Ball Bearing 35x62x14mm
NTN 6007C3 Open Type Deep Groove Ball Bearing 35x62x14mm
Regular price
CHF 13.00
ex VAT
Regular price
Sale price
CHF 13.00
ex VAT
Equivalent to: 9107KC3 9107C3 107KSC3 6107C3 3L07C3 EL35C3 ELL35C3
In stock
Price Break
3+
CHF 10.12
5+
CHF 9.55
10+
CHF 9.44
25+
CHF 9.32
49+
CHF 9.21
74+
CHF 9.10
99+
CHF 8.53
199+
CHF 8.41
249+
CHF 8.30
499+
CHF 8.19
999+
CHF 7.96
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 9107KC3 9107C3 107KSC3 6107C3 3L07C3 EL35C3 ELL35C3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 62mm |
| B | 14mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 17.7 kN |
| C<sub>or</sub> | 10.3 kN |
| C<sub>u</sub> | 0.805 kN |
| f<sub>0</sub> | 14.8 kN |
| Grease | 12000 rpm |
| Oil | 14000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 40mm |
| D<sub>a</sub> Max. | 57mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.155 kg |
