SKU: 6007LLUNR/2AS-NTN

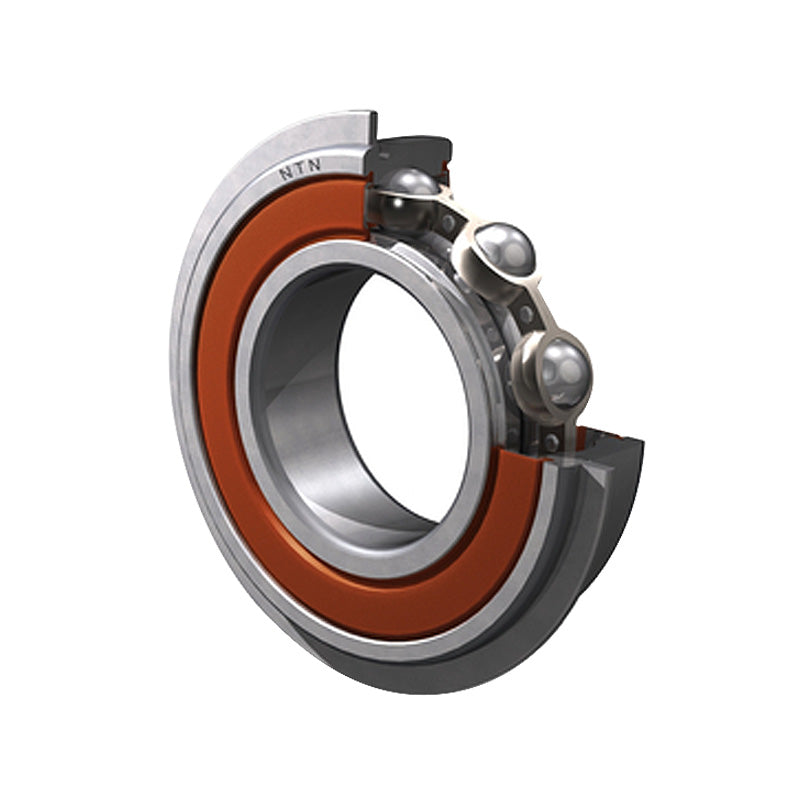

NTN 6007LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 35x62x14mm
Equivalent to: 6007LLUNRCM 6007LLUNR 6007NSENR 6007DUNR 6007RSNR 6007RSHNR 6007PNR 6007RSRNR 6007LUNR 60072NSENR 6007DDUNR 60072RSNR 6007-2RSNR 60072RS1NR 60072RSHNR 6007PPNR 60072RSRNR 6007LLUNR 6007RS2NR 60072RS2NR 60072RSLNR 6007LFSNR 6007EENR 9107NPPG 107KSZZG Z4993L07
In stock
Price Break
Description
Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 62mm |
| B | 14mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 17.7 kN |
| C<sub>or</sub> | 10.3 kN |
| C<sub>u</sub> | 0.805 kN |
| f<sub>0</sub> | 14.8 |
| --- | Fitting Dimensions |
| Speed | 6800rpm |
| D<sub>1</sub> Max. | 59.61mm |
| a Max. | 2.08mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
