SKU: 6008-2RS-CDX

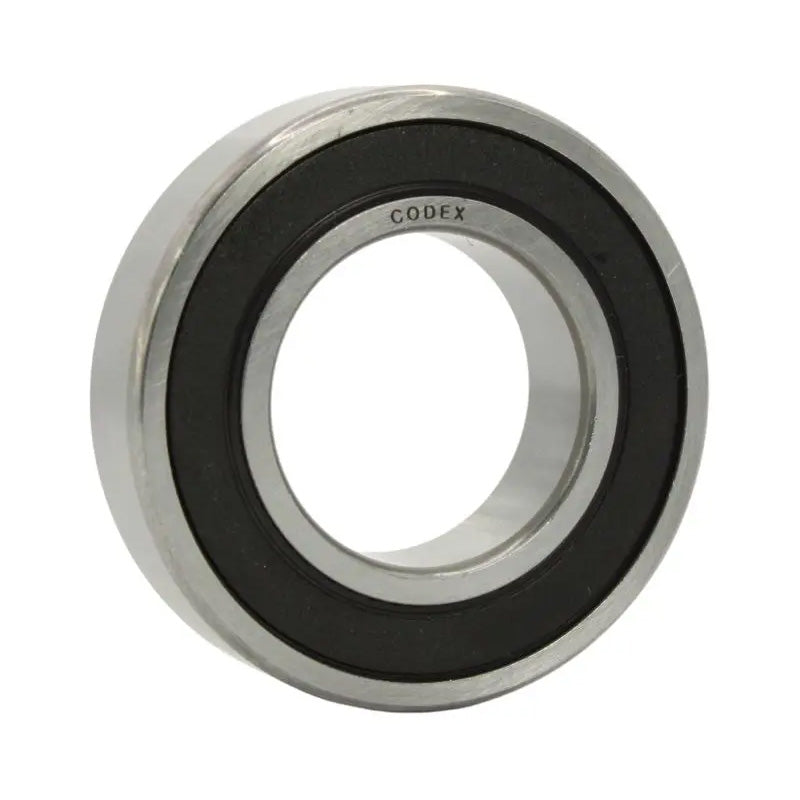

Codex 60082RS Rubber Sealed Deep Groove Ball Bearing 40x68x15mm
Codex 60082RS Rubber Sealed Deep Groove Ball Bearing 40x68x15mm
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
Equivalent to: 60082RS 60082RSH 60082RS1 60082RSR 60082RSL 6008LFS 6008EE 6008DU 6008LLU EL402RS 6008PP 9108PP 108KSZZ 993L08 6108KK 10L40
In stock
Price Break
4+
CHF 8.32
10+
CHF 7.85
20+
CHF 7.75
30+
CHF 7.66
50+
CHF 7.57
75+
CHF 7.47
100+
CHF 7.01
200+
CHF 6.91
250+
CHF 6.82
500+
CHF 6.73
1000+
CHF 6.54
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 60082RS 60082RSH 60082RS1 60082RSR 60082RSL 6008LFS 6008EE 6008DU 6008LLU EL402RS 6008PP 9108PP 108KSZZ 993L08 6108KK 10L40
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 68mm |
| B | 15mm |
| Dynamic load C | 17.8 kN |
| Static load Co | 11.6 kN |
| Fatigue load limit Pu | 0.49 |
| Reference speed | 22000 rpm |
| Limiting speed | 6300 rpm |
| Weight | 0.19 kg |
| d1 | 49.3mm |
| D2 | 61.1mm |
| r1r2 | 1mm |
| da min | 44.6mm |
| Da max | 63.4mm |
| ra max | 1mm |
| Calc factor kr | 25 |
| Calc factor Cor f0 | 15 |
