SKU: 6008NR-SKF

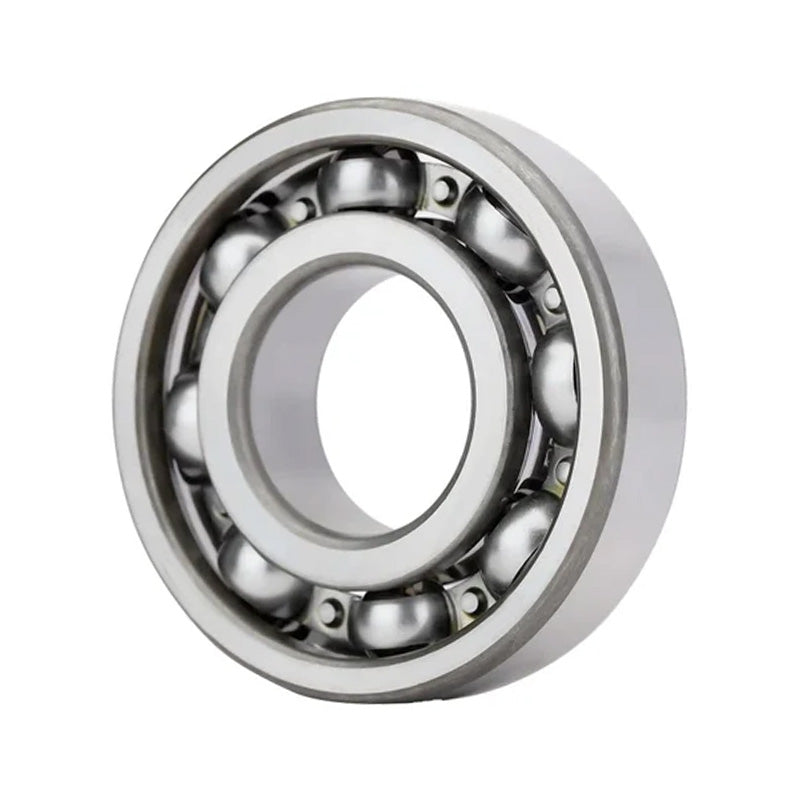

SKF 6008NR Open Type Snap Ring Deep Groove Bearing 40x68x15mm
SKF 6008NR Open Type Snap Ring Deep Groove Bearing 40x68x15mm
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
In stock
Price Break
4+
CHF 27.79
10+
CHF 26.22
20+
CHF 25.91
30+
CHF 25.60
50+
CHF 25.29
75+
CHF 24.98
100+
CHF 23.41
200+
CHF 23.10
250+
CHF 22.79
500+
CHF 22.48
1000+
CHF 21.85
Description
Description
|

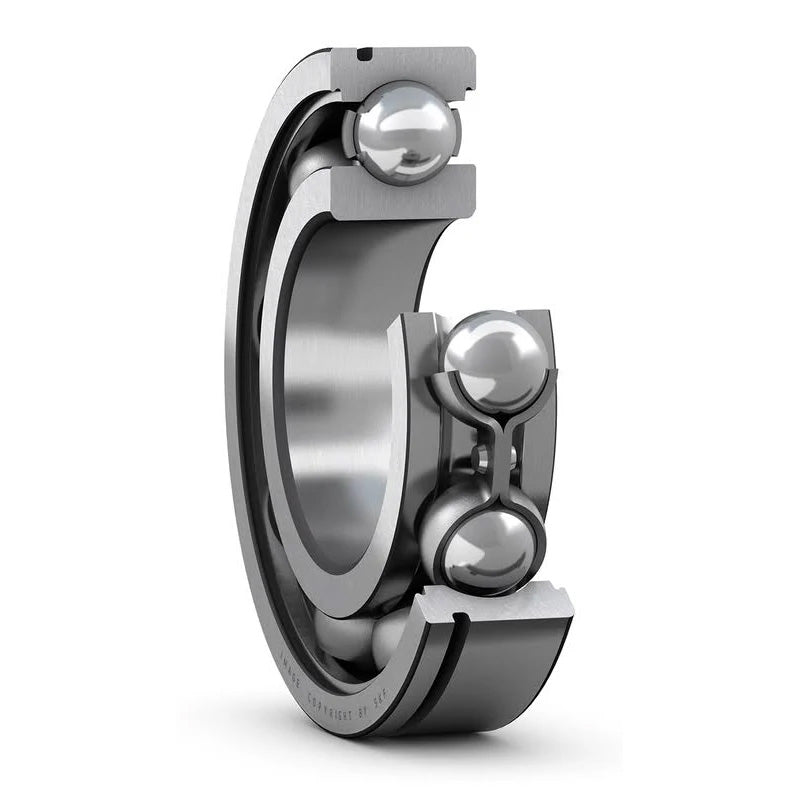

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 40mm |
|---|---|
| D | 68mm |
| B | 15mm |
| Dynamic load C | 17.8 kN |
| Static load Co | 11 kN |
| Fatigue load limit Pu | 0.49 kN |
| Reference speed | 22000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.19kg |
| Snap ring | SP 68 |
| d1 | 49.2mm |
| D2 | 61.1mm |
| D3 | 64.82mm |
| D4 | 74.6mm |
| b | 1.9mm |
| f | 1.7mm |
| C | 2.49mm |
| r1r2 min | 1mm |
| ro max | 0.6mm |
| da min | 44.6mm |
| Da max | 63.4mm |
| Db min | 76mm |
| ba min | 2.2mm |
| Ca max | 4.19mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| fo | 15 |
