SKU: 6008ZZNR/2AS-NTN

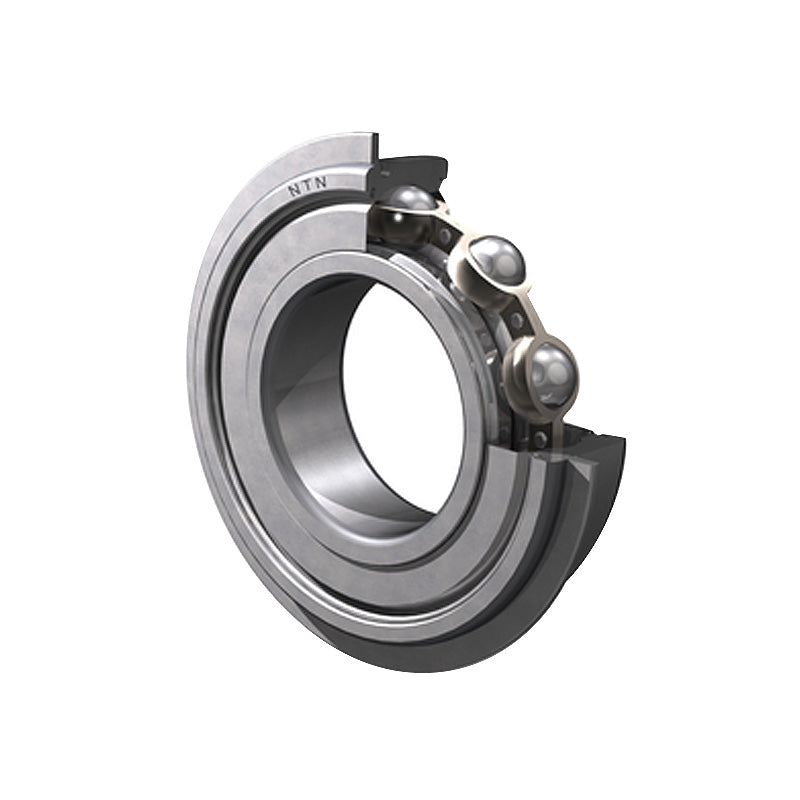

NTN 6008ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 40x68x15mm
Equivalent to: 6008ZZNRCM 6008ZZNR 6008ZZNR 60082ZNR 6008ZZNR 60082ZRNR 6008ZZENR 6008FFNR 6008DDNR 6008DDCNR 6008KDDCNR EL402ZNR EL40ZZNR 9108KDDG 4773L08 108KSFFG
In stock
Price Break
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6008ZZNRCM 6008ZZNR 6008ZZNR 60082ZNR 6008ZZNR 60082ZRNR 6008ZZENR 6008FFNR 6008DDNR 6008DDCNR 6008KDDCNR EL402ZNR EL40ZZNR 9108KDDG 4773L08 108KSFFG
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 15mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 68mm |
| B | 15mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 18.6 kN |
| C<sub>or</sub> | 11.5 kN |
| C<sub>u</sub> | 0.89 kN |
| f<sub>0</sub> | 15.2 rpm |
| Grease | 10000 rpm |
| --- | Fitting Dimensions |
| Oil | 12000 rpm |
| D<sub>1</sub> Max. | 64.82mm |
| a Max. | 2.49mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
