SKU: 6009-2RS1/C3-EU

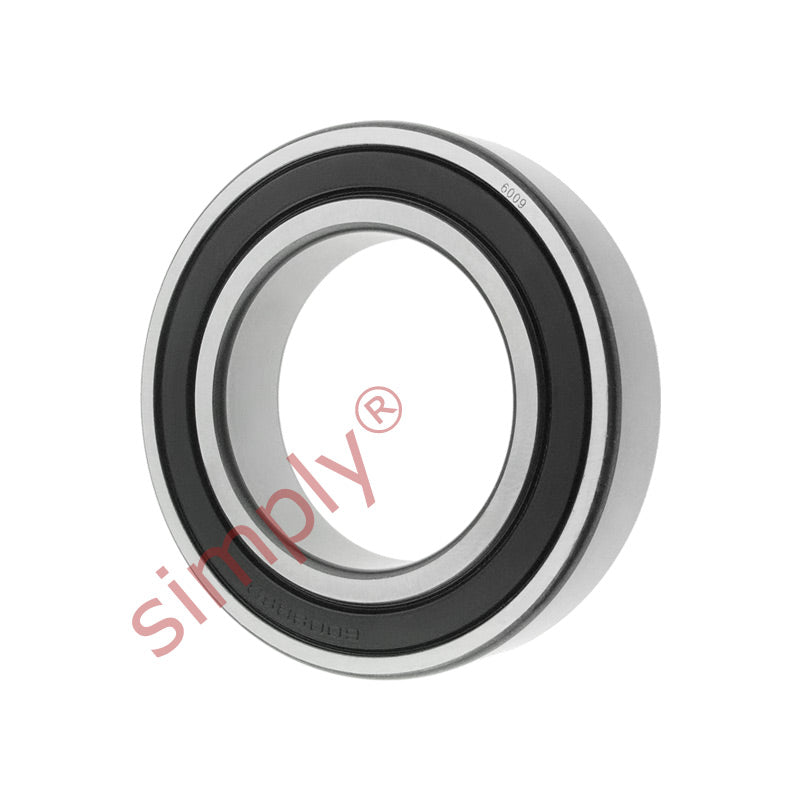

60092RSC3 Budget Rubber Sealed Deep Groove Ball Bearing 45x75x16mm
Equivalent to: 6009NSEC3 6009DUC3 6009RSC3 6009RSHC3 6009PC3 6009RSRC3 6009LUC3 60092NSEC3 6009DDUC3 6009PPC3 60092RSRC3 6009LLUC3 60092RSC3 60092RSC3 60092RS2C3 60092RS1C3 60092RSHC3
In stock
Price Break
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6009NSEC3 6009DUC3 6009RSC3 6009RSHC3 6009PC3 6009RSRC3 6009LUC3 60092NSEC3 6009DDUC3 6009PPC3 60092RSRC3 6009LLUC3 60092RSC3 60092RSC3 60092RS2C3 60092RS1C3 60092RSHC3
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 45mm |
|---|---|
| D | 75mm |
| B | 16mm |
| r min | 1mm |
| Dynamic load Cr | 21 kN |
| Static load Cor | 15.1 kN |
| Speed in grease | 9200 rpm |
| Speed in oil | 11000 rpm |
