SKU: 6009-HT-270

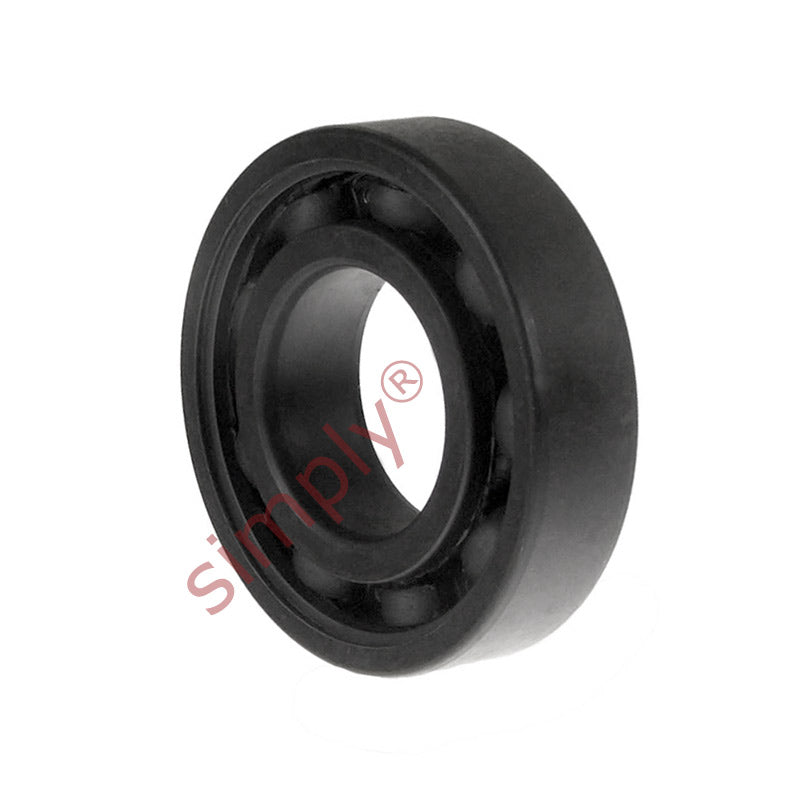

6009HT270 High Temp 270C High Speed Open Deep Groove Ball Bearing 45x75x16mm Max 730rpm
6009HT270 High Temp 270C High Speed Open Deep Groove Ball Bearing 45x75x16mm Max 730rpm
Regular price
CHF 20.00
ex VAT
Regular price
Sale price
CHF 20.00
ex VAT
Equivalent to: 6009VA201 6009VA208 6009VA228
In stock
Price Break
3+
CHF 15.35
5+
CHF 14.48
10+
CHF 14.31
15+
CHF 14.14
20+
CHF 13.97
30+
CHF 13.79
40+
CHF 12.93
50+
CHF 12.76
60+
CHF 12.59
75+
CHF 12.42
100+
CHF 12.07
Share this product
Description
Description
HT270 Series High-Temperature Range Deep Groove Ball Bearings: With an operating range from minus 25 degrees up to plus 270 degrees Celsius these bearings are ideally situated in arduous conditions where rapid temperature changes are expected, refrigeration and baking equipment being a good example. Of standard ball bearing construction with an increased radial clearance to compensate for thermal expansion, they are manufactured without seals or shields. The bearings have a BLACK MANGANESE PHOSHPATE coating to the bearings outer surfaces
Benefits: Wide operating temperature range, can be re-lubricated
Equivalent: 6009VA201 6009VA208 6009VA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 45mm |
|---|---|
| Outside diameter D | 75mm |
| Width W | 16mm |
| Static load max | 8.27 kN |
| Max operating temperature | 270 deg Celcius |
| Maximum speed | 730 rpm |
| Weight | 250 g |
