SKU: 6009-NTN

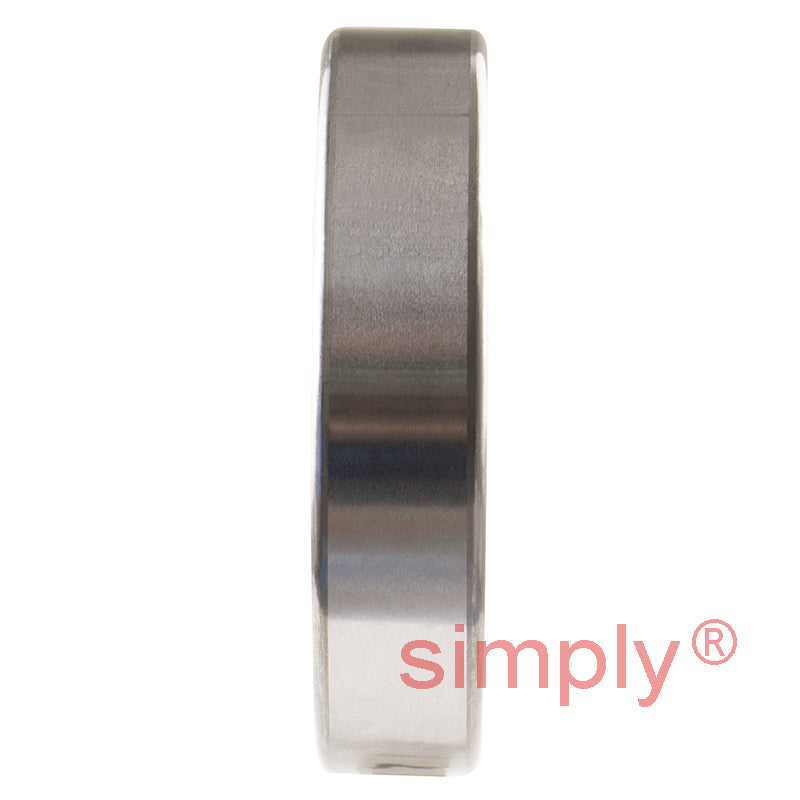

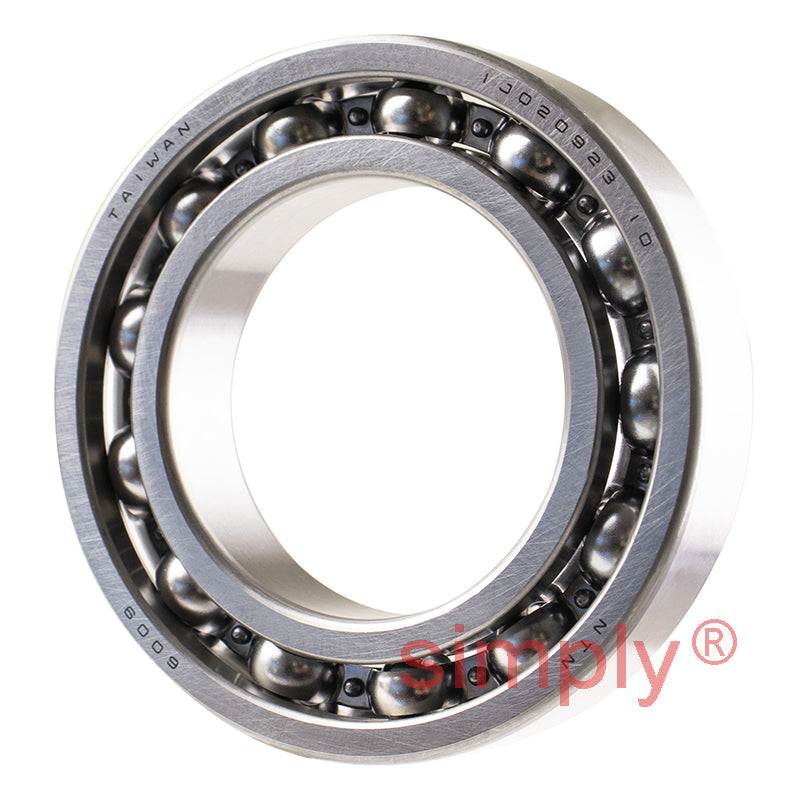

NTN 6009 Open Type Deep Groove Ball Bearing 45x75x16mm
NTN 6009 Open Type Deep Groove Ball Bearing 45x75x16mm
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
Equivalent to: 6009CM 9109K 9109 109KS 6109 3L09 EL45 ELL45
In stock
Price Break
3+
CHF 13.97
5+
CHF 13.19
10+
CHF 13.03
25+
CHF 12.87
49+
CHF 12.72
74+
CHF 12.56
99+
CHF 11.78
199+
CHF 11.62
249+
CHF 11.46
499+
CHF 11.30
999+
CHF 10.99
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6009CM 9109K 9109 109KS 6109 3L09 EL45 ELL45
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 45mm |
| D | 75mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 23.2 kN |
| C<sub>or</sub> | 15.1 kN |
| C<sub>u</sub> | 1.16 kN |
| f<sub>0</sub> | 15.3 kN |
| Grease | 9200 rpm |
| Oil | 11000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 50mm |
| D<sub>a</sub> Max. | 70mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.237 kg |
