SKU: 6009-ZZE-NACHI

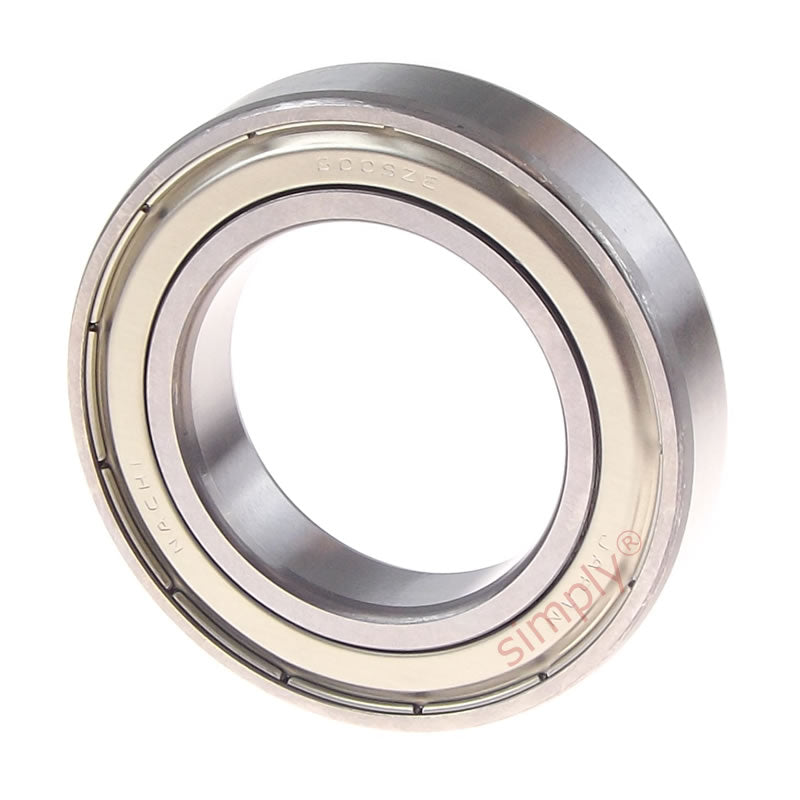

NACHI 6009ZZE Metal Shielded Deep Groove Ball Bearing 45x75x16mm
NACHI 6009ZZE Metal Shielded Deep Groove Ball Bearing 45x75x16mm
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
Equivalent to: 6009ZZ 60092Z 6009.2Z 6009KDD 6009DD 60092ZR 6009FF
In stock
Price Break
5+
CHF 8.01
9+
CHF 7.56
19+
CHF 7.47
29+
CHF 7.38
49+
CHF 7.29
74+
CHF 7.20
99+
CHF 6.75
199+
CHF 6.66
249+
CHF 6.57
499+
CHF 6.48
999+
CHF 6.30
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6009ZZ 60092Z 6009.2Z 6009KDD 6009DD 60092ZR 6009FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 75mm |
| Width B | 16mm |
| Min radius r | 1mm |
| Dynamic load | 20900 kN |
| Static load | 15200 kN |
| Max speed | 9200 rpm |
| da min | 50mm |
| Da max | 70mm |
| ra max | 1mm |
| Weight | 0.246 kg |
