SKU: 6010-2RS/C3-KOY

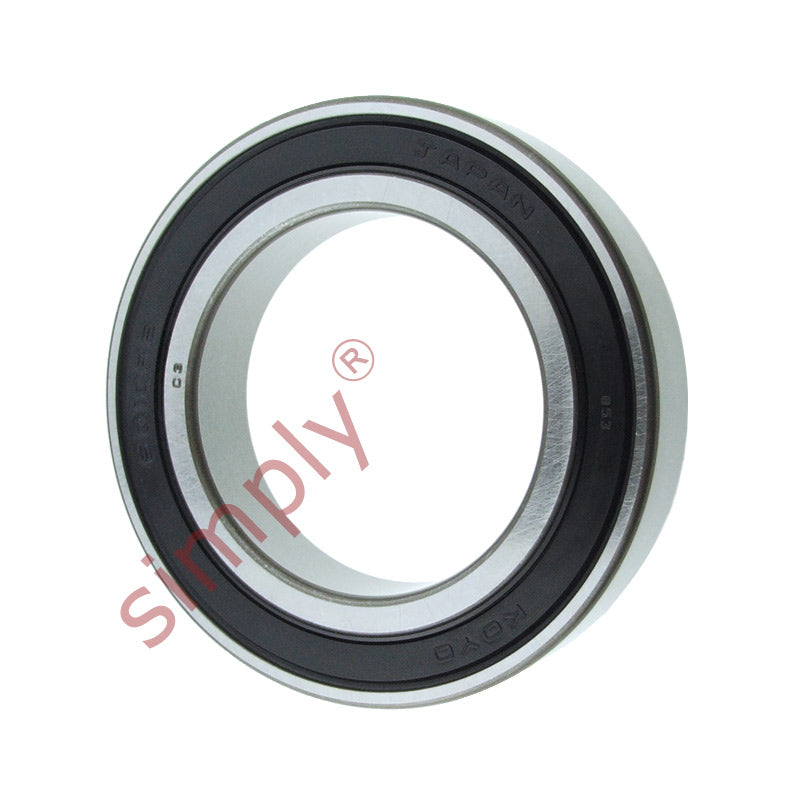

KOYO 60102RSC3 Rubber Sealed Deep Groove Ball Bearing 50x80x16mm
Equivalent to: 6010NSEC3 6010DUC3 6010RSC3 6010RSHC3 6010PC3 6010RSRC3 6010LUC3 60102NSEC3 6010DDUC3 60102RS1C3 60102RSHC3 6010PPC3 60102RSRC3 6010LLU
In stock
Price Break
Couldn't load pickup availability
Description
|
KOYO Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6010NSEC3 6010DUC3 6010RSC3 6010RSHC3 6010PC3 6010RSRC3 6010LUC3 60102NSEC3 6010DDUC3 60102RS1C3 60102RSHC3 6010PPC3 60102RSRC3 6010LLU
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| Inside Diameter d | 50mm |
|---|---|
| Outside Diameter D | 80mm |
| Width B | 16mm |
| Min radius r | 1mm |
| Dynamic load | 21.8 kN |
| Static load | 16.6 kN |
| Max speed in oil | 9900 rpm |
| Max speed in grease | 4800 rpm |
