SKU: 6010/C3-SKF

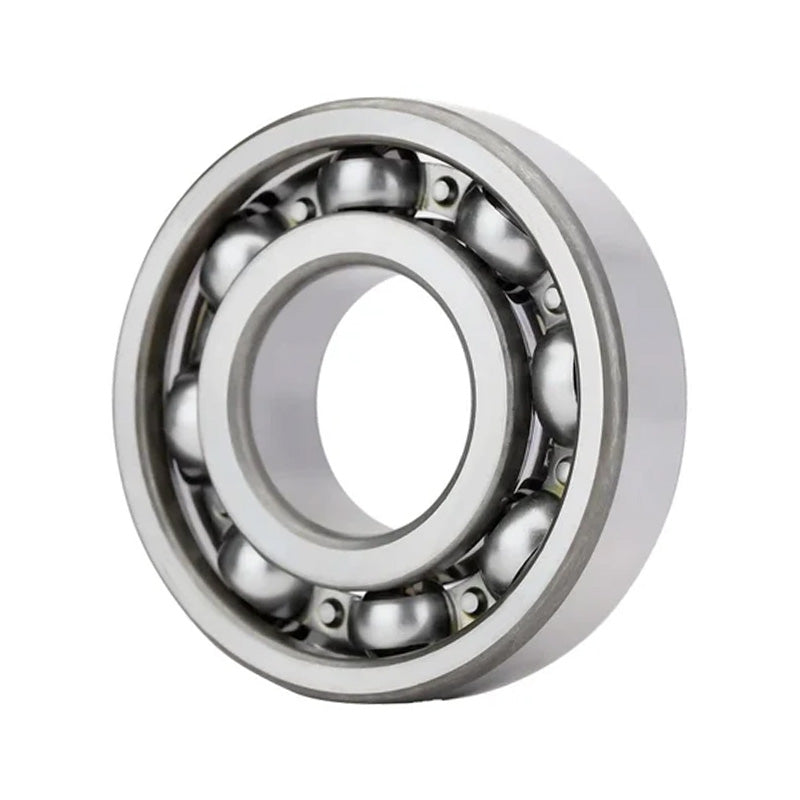

SKF 6010C3 Open Deep Groove Ball Bearing 50x80x16mm
SKF 6010C3 Open Deep Groove Ball Bearing 50x80x16mm
Regular price
CHF 17.00
ex VAT
Regular price
Sale price
CHF 17.00
ex VAT
In stock
Price Break
4+
CHF 13.05
10+
CHF 12.31
20+
CHF 12.17
30+
CHF 12.02
50+
CHF 11.87
75+
CHF 11.73
100+
CHF 11.00
200+
CHF 10.85
250+
CHF 10.70
500+
CHF 10.56
1000+
CHF 10.26
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 50mm |
|---|---|
| D | 80mm |
| B | 16mm |
| Dynamic load | 22.9 kN |
| Static load | 16 kN |
| Fatigue load limit Pu | 0.71 kN |
| Reference speed | 18000 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.26 kg |
| d1 | 59.8mm |
| D1 | 70.3mm |
| D2 | 72.8mm |
| r1r2 min | 1mm |
| da min | 54.6mm |
| Da max | 75.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 15 |
